STU12N65M5

N-Channel Power MOSFET

ST Microelectronics

STU12N65M5 Features

* Type STD12N65M5 STF12N65M5 STP12N65M5 STU12N65M5 710 V < 0.41 Ω VDSS @ TJmax RDS(on) max ID 8.5 A 8.5 A 8.5 A PW 2 3 1 3 1 2 70 W 70 W 70 W 8.5 A(1) 25 W IPAK TO-220 3 1. Limited only by maximum temperature allowed

* 1 1 2 3 Worldwide best RDS(on)

* are

STU12N65M5 General Description

MDmesh V is a revolutionary Power MOSFET technology, which combines an innovative proprietary vertical process with the well known company’s PowerMESH™ horizontal layout. The resulting product has an extremely low onresistance, unmatched among silicon-based Power MOSFETs, making it especially suited.

STU12N65M5 Datasheet (1.03 MB)

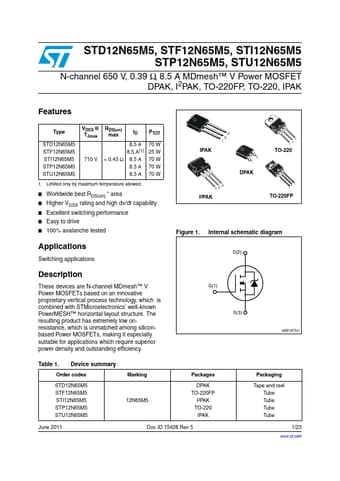

STU12N65M5 Datasheet Preview — Preview of STU12N65M5 PDF

Datasheet Details

Part number:

STU12N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

1.03 MB

Description:

N-channel power mosfet.
www.DataSheet4U.com STD12N65M5, STF12N65M5 STP12N65M5, STU12N65M5 N-channel 650 V, 0.370 Ω, 8.5 A MDmesh™ V Power MOSFET DPAK, TO-220FP, TO-220, IPAK.
