WSP4984 Datasheet - Winsok

WSP4984 Dual N-Channel MOSFET

The WSP4984 is the highest performance trench N-Channel MOSFET with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the synchronous buck converter applications. The WSP4984 meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reli.

WSP4984 Features

* Advanced high cell density Trench technology

* Super Low Gate Charge

* Excellent CdV/dt effect decline

* 100% EAS Guaranteed

* Green Device Available WSP4984 Dual N-Channel MOSFET Product Summery BVDSS 40V RDS(ON) 15mΩ ID 10A Applications

* White LED boost converters

WSP4984-Winsok.pdf

Preview of WSP4984 PDF

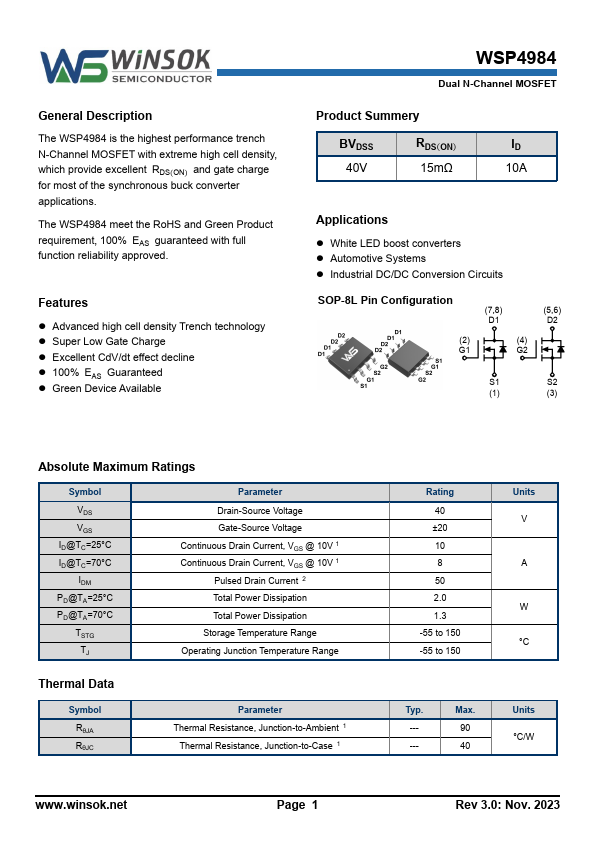

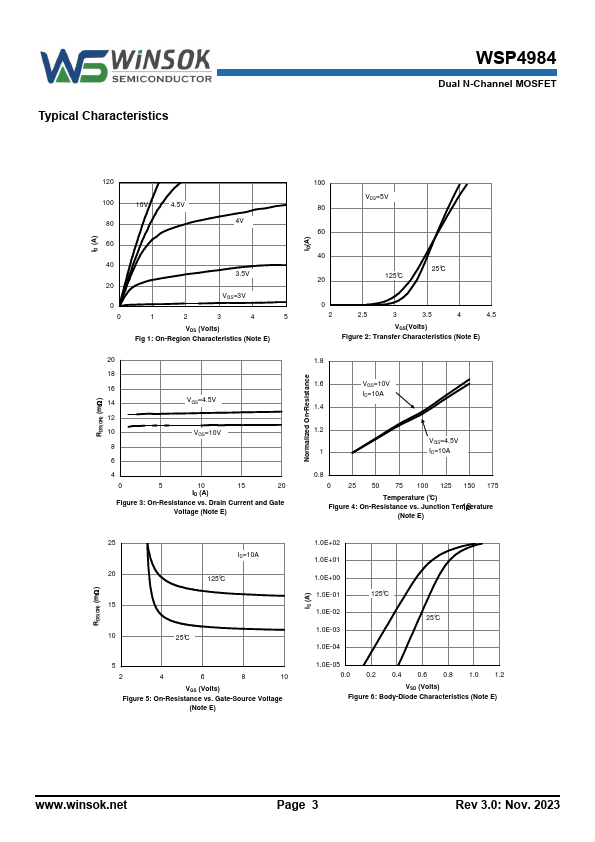

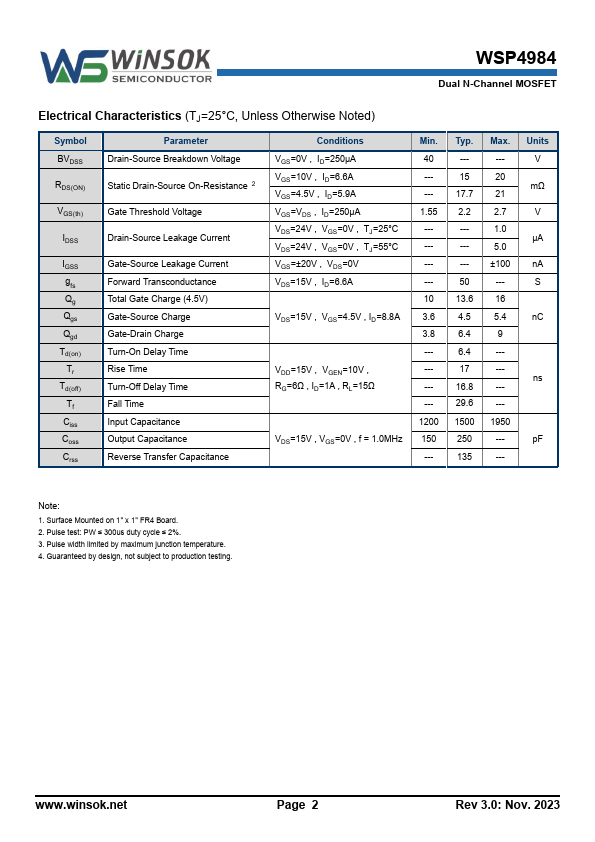

WSP4984 Datasheet Preview Page 2 WSP4984 Datasheet Preview Page 3

Datasheet Details

Part number:

WSP4984

Manufacturer:

Winsok

File Size:

1.42 MB

Description:

Dual n-channel mosfet.
