WM8190

(8+6) Bit Output 14-bit CIS/CCD AFE/Digitiser

Wolfson Microelectronics plc

WM8190 Features

* 14-bit ADC

* No missing codes guaranteed

* 6MSPS conversion rate

* Low power

* 250mW typical

* 5V single supply or 5V/3.3V dual supply operation

* Single or 3 channel operation

* Correlated double sampling

* Programmable gain

WM8190 General Description

The WM8190 is a 14-bit analogue front end/digitiser IC which processes and digitises the analogue output signals from CCD sensors or Contact Image Sensors (CIS) at pixel sample rates of up to 6MSPS. The device includes three analogue signal processing channels each of which contains Reset Level Clam.

WM8190 Datasheet (426.79 KB)

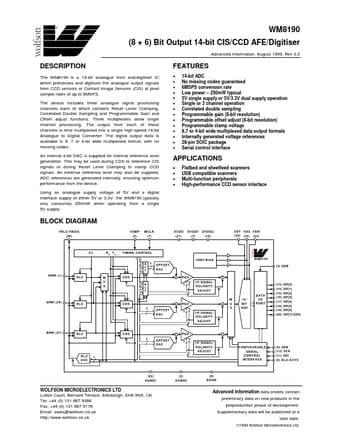

WM8190 Datasheet Preview — Preview of WM8190 PDF

Datasheet Details

Part number:

WM8190

Manufacturer:

Wolfson Microelectronics plc

File Size:

426.79 KB

Description:

(8+6) bit output 14-bit cis/ccd afe/digitiser.
