WM8191 Datasheet, End/digitiser, Wolfson Microelectronics plc

WM8191 Features

  • End/digitiser
  • 14-bit ADC
  • No missing codes guaranteed
  • 6MSPS conversion rate
  • Low power
      – 250mW typical
  • 5V single supply or 5V/3.3V dual

PDF File Details

Part number:

WM8191

Manufacturer:

Wolfson Microelectronics plc

File Size:

343.17kb

Download:

📄 Datasheet

Description:

14-bit 6msps cis/ccd analogue front end/digitiser. The WM8191 is a 14-bit analogue front end/digitiser IC which processes and digitises the analogue output signals from CCD sensors or

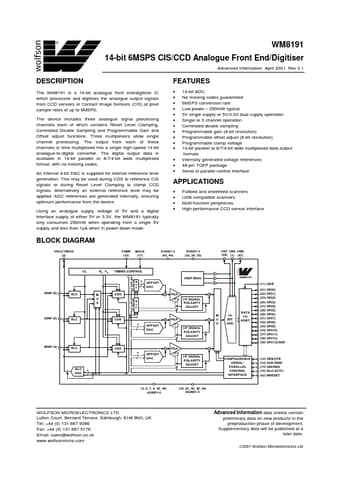

Datasheet Preview: WM8191 📥 Download PDF (343.17kb)
Page 2 of WM8191 Page 3 of WM8191

WM8191 Application

  • Applications
  • Flatbed and sheetfeed scanners
  • USB compatible scanners
  • Multi-function peripherals
  • High-performa
