WM8803 Datasheet - Wolfson Microelectronics plc

DIGITAL AUDIO INTERFACE RECEIVER

WM8803 Features

* PLL circuit for synchronization with transferred input biphase mark signal.

* Input sampling frequency: 32kHz to 192kHz

* Outputs clocks: fs, 64fs, and one of 128fs, 256fs, 384fs, and 512fs.

* 4-Wire CCB MPU Serial Control or Hardware Default Interface

* Mas

WM8803 General Description

The WM8803 is a digital audio interface receiver conforming to IEC 60958/61937 and EIAJ CP-1201. It supports input audio data rates up to 192kHz and a maximum output data length of 24 bits. The WM8803 has a flexible digital output port that allows the user access to channel status pre-emphasis infor.

WM8803 Datasheet (363.76 KB)

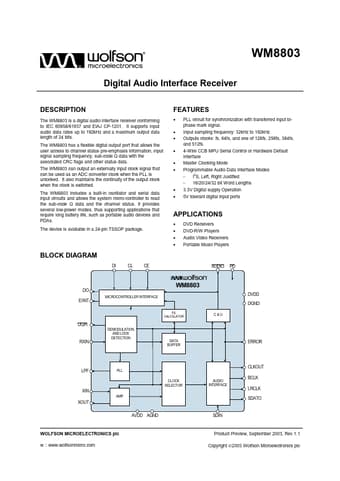

WM8803 Datasheet Preview — Preview of WM8803 PDF

Datasheet Details

Part number:

WM8803

Manufacturer:

Wolfson Microelectronics plc

File Size:

363.76 KB

Description:

Digital audio interface receiver.
