WM8850

Multi Channel HDA CODEC

WM8850 Features

* Multi-channel High Definition Audio CODEC Fully compatible with Intel High Definition Audio Revision 1.0 6-Channel DAC, 4-channel ADC DAC sampling frequency 8kHz - 192kHz ADC sampling frequency 8kHz - 96kHz DAC Performance: - SNR 108 dB (‘A

WM8850 General Description

The WM8850 is a high performance multi-channel audio CODEC designed for high performance PC audio systems. The device offers full compatibility with the Intel High Definition Audio (HDA) specification revision 1.0, allowing seamless integration with industry-standard HDA controllers. The WM8850 has .

WM8850 Datasheet (365.49 KB)

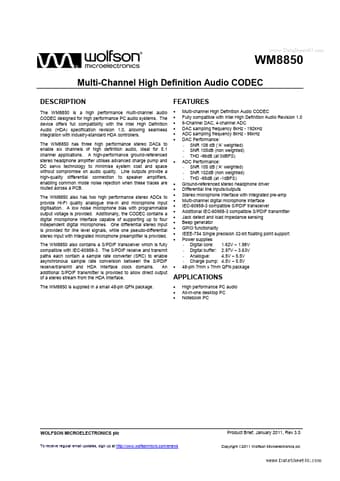

Preview of WM8850 PDF

Datasheet Details

Part number:

WM8850

Manufacturer:

Wolfson Microelectronics

File Size:

365.49 KB

Description:

Multi channel hda codec.
