WM8816

Stereo Digital Volume Control

Wolfson Microelectronics plc

WM8816 Features

* peak level detection, which can be used for Automatic Gain Control. The WM8816 operates from a single +5V supply and accepts signal input levels up to ±18V. The WM8816 is available in a 16-pin SOIC package. It is guaranteed over a temperature range of -40° to 85°C. WM8816 Stereo Digital Volume Cont

WM8816 General Description

The WM8816 is a highly linear stereo volume control for audio systems. The design is based on resistor chains with external op-amps, which provides flexibility for the supply voltage, signal swing, noise floor and cost optimisation. The gain of each channel can be independently programmed from -111..

WM8816 Datasheet (130.25 KB)

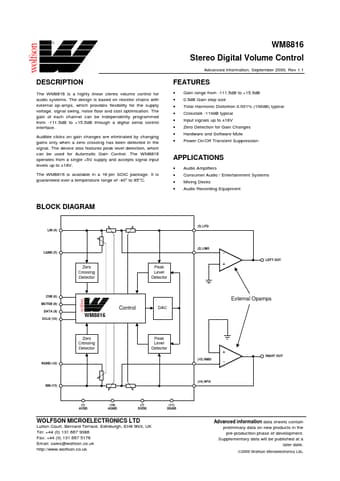

WM8816 Datasheet Preview — Preview of WM8816 PDF

Datasheet Details

Part number:

WM8816

Manufacturer:

Wolfson Microelectronics plc

File Size:

130.25 KB

Description:

Stereo digital volume control.
