CHB011M12GM4, T-Type Module

CHB011M12GM4, CHB011M12GM4T 1200 V, 11 mΩ, Silicon Carbide, T-Type Module Technical .

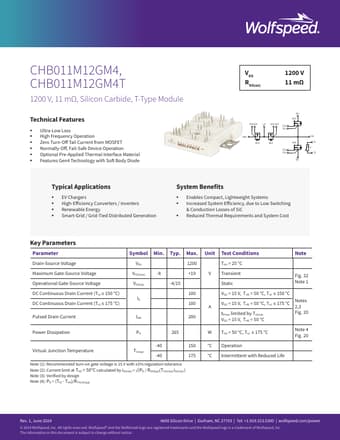

datasheet Preview Page 1 from Datasheet4u.com

CHB011M12GM4-Wolfspeed.pdf

CHB011M12GM4 Datasheet Preview — Preview of CHB011M12GM4 PDF

Datasheet Details

Part number:

CHB011M12GM4

Manufacturer:

Wolfspeed

File Size:

2.98 MB

Description:

T-Type Module

Features

* Ultra-Low Loss
* High Frequency Operation
* Zero Turn-Off Tail Current from MOSFET
* Normally-Off, Fail-Safe Device Operation
* Optional Pre-Applied Thermal Interface Material
* Features Gen4 Technology with Soft Body Diode VDS 1200 V R 5 4 DS

Applications

* EV Chargers
* High-Efficiency Converters / Inverters
* Renewable Energy
* Smart-Grid / Grid-Tied Distributed Generation B System Benefits
* Enables Compact, Lightweight Systems
* Increased System Efficiency, due to Low Switching & Conduction LosseA
