WAS530M12BM3T, WAS530M12BM3 - Half-Bridge Module

Wolfspeed

📥 Download Datasheet

WAS530M12BM3T Datasheet Preview — This datasheet PDF includes multiple part numbers: WAS530M12BM3T, WAS530M12BM3. Please refer to the document for exact specifications by model.

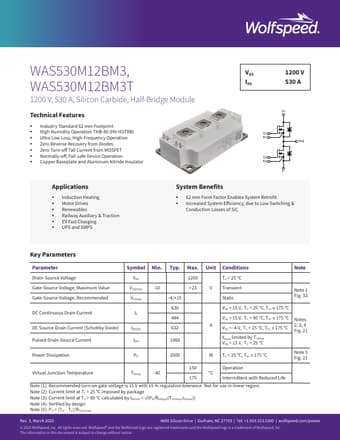

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: WAS530M12BM3T, WAS530M12BM3
Manufacturer: Wolfspeed
File Size: 3.37 MB
Datasheet: WAS530M12BM3-Wolfspeed.pdf
Description: Half-Bridge Module
Note: This datasheet PDF includes multiple part numbers: WAS530M12BM3T, WAS530M12BM3.
Please refer to the document for exact specifications by model.

WAS530M12BM3T Product details

Features

Industry Standard 62 mm Footprint.
High Humidity Operation THB-80 (HV-H3TRB).
Ultra Low Loss, High-Frequency Operation.
Zero Reverse Recovery from Diodes.
Zero Turn-off Tail Current from MOSFET.
Normally-off, Fail-safe Device Operation.
Copper Baseplate and Aluminum Nitride Insulator C VDS IDS4 1200 V 3 530 A 2 V+ G1 K1 Mid G2 K2 V-.
