FR103G, FR101G-Won 1.0A GLASS PASSIVATED FAST RECOVERY DIODE

FR103G Description

WTE POWER SEMICONDUCTORS FR101G * FR107G Pb 1.0A GLASS PASSIVATED FAST RECOVERY DIODE .

FR103G Features

* ! Glass Passivated Die Construction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability AB A Mechanical Data ! Case: DO-41, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 g

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR103G, FR101G-Won. Please refer to the document for exact specifications by model.

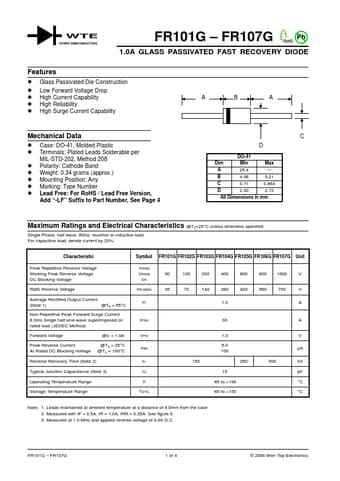

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FR103G, FR101G-Won
Manufacturer
Won-Top
File Size
52.10 KB
Datasheet
FR101G-Won-Top.pdf
Description
1.0A GLASS PASSIVATED FAST RECOVERY DIODE
Note
This datasheet PDF includes multiple part numbers: FR103G, FR101G-Won.
Please refer to the document for exact specifications by model.
