YD2024 3.5W Stereo Audio Amplifier

YD2024 Description

YOUDA INTEGRATED CIRCUIT YD2024 3.5W STEREO AUDIO AMPLIFIER * *YD2024 .
The YD2024 is a monolithic integrated audio amplifier . Working Voltage 3～18V;.

YD2024 Features

* Working Voltage 3～18V;
* Few External components;
* High channel isolation;
* Voltage gain up to 46dB(Adjustable with external resistor);
* Soft clipping;

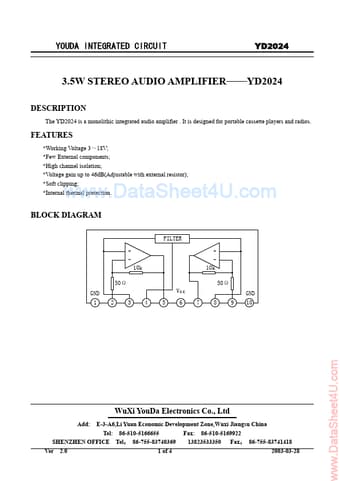

* Internal thermal protection. www. DataSheet4U. com FILTER + 10k 50Ω GND 1 2 3 4 5 Vcc 6 7 8 9 + 10k 50Ω GND 10 BLOCK DIAGRA
