YD22241 - DUAL EQUALIZER AMPLIFIER

Wuxi Youda electronics

📥 Download Datasheet

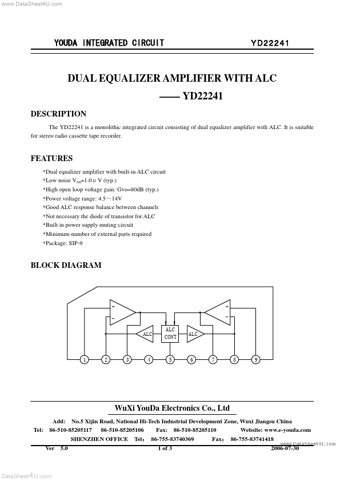

YD22241 Datasheet Preview — Preview of YD22241 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	YD22241
Manufacturer	Wuxi Youda electronics
File Size	207.88 KB
Description	DUAL EQUALIZER AMPLIFIER
Datasheet	YD22241_WuxiYoudaelectronics.pdf

YD22241 Product details

Description

The YD22241 is a monolithic integrated circuit consisting of dual equalizer amplifier with ALC.

Features

Dual equalizer amplifier with built-in ALC circuit.
Low noise VNI=1.0μV (typ. ).
High open loop voltage gain: Gvo=80dB (typ. ).
Power voltage range: 4.5～14V.
Good ALC response balance between channels.
Not necessary the diode of transistor for ALC.
Built in power supply muting circuit.
Minimum number of external parts required.
Package: SIP-9 BLOCK.
