YD2206 - 2.5W DUAL AUDIO POWER AMP

Wuxi Youda electronics

Datasheet Details

Part number	YD2206
Manufacturer	Wuxi Youda electronics
File Size	104.70 KB
Description	2.5W DUAL AUDIO POWER AMP
Datasheet	YD2206_WuxiYoudaelectronics.pdf

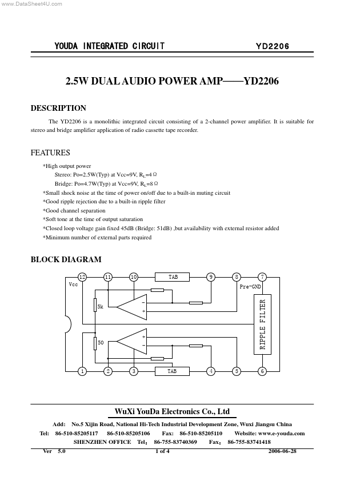

The YD2206 is a monolithic integrated circuit consisting of a 2-channel power amplifier.

High output power Stereo: Po=2.5W(Typ) at Vcc=9V, RL=4Ω Bridge: Po=4.7W(Typ) at Vcc=9V, RL=8Ω.
Small shock noise at the time of power on/off due to a built-in muting circuit.
Good ripple rejection due to a built-in ripple filter.
Good channel separation.
Soft tone at the time of output saturation.
Closed loop voltage gain fixed 45dB (Bridge: 51dB) ,but availability with external resistor added.
Minimum number of external parts required BLOCK.
