YD3361 Datasheet, Amplifier, Wuxi Youda Electronics

YD3361 Features

  • Amplifier
  • Operates from 2.0 to 8.0 V supply.
  • Low drain current 3.9 mA Typical (VCC=4.0 Vdc).
  • Excellent sensitivity: input limiting voltage
      –3.0 Db =2.6¦

PDF File Details

Part number:

YD3361

Manufacturer:

Wuxi Youda Electronics

File Size:

83.39kb

Download:

📄 Datasheet

Description:

Low power narrow band if amplifier. w w The YD3361 includes an Oscillator, Mixer, Limiting Amplifier, Quadrature Discriminator, Active Filter, Squelch, wScan Control ND

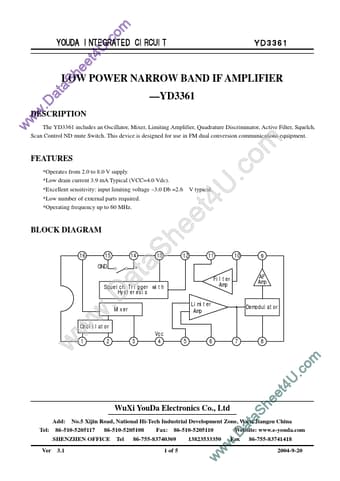

Datasheet Preview: YD3361 📥 Download PDF (83.39kb)
Page 2 of YD3361 Page 3 of YD3361
