YD329, VFD/LED DRIVER

YOUDA INTEGRATED CIRCUIT YD329 VFD/LED DRIVER *YD329 .
The YD329 is a monolithic integrated circuit designed for signal 10-dot VFD/LED level meter drivers with a built-in rectifying amplifier.

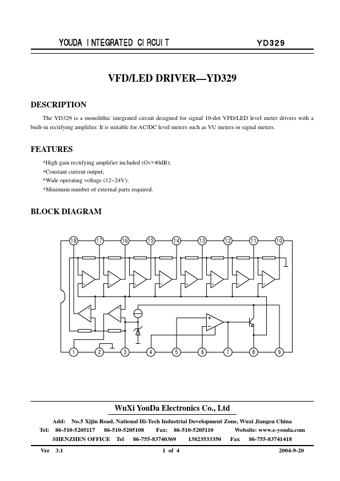

datasheet Preview Page 1 from Datasheet4u.com

YD329-WuxiYoudaelectronics.pdf

YD329 Datasheet Preview — Preview of YD329 PDF

Datasheet Details

Part number:

YD329

Manufacturer:

Wuxi Youda electronics

File Size:

32.92 KB

Description:

VFD/LED DRIVER

Features

* High gain rectifying amplifier included (Gv>40dB);
* Constant current output;
* Wide operating voltage (12~24V);
* Minimum number of external parts required. BLOCK DIAGRAM 18 17 16 15 14 13 12 11 10 ________ ++++++++ __ ++ 12345 6789 WuXi YouDa Electronics Co. , Ltd Add: No.5 Xijin
