YD3308F - DUAL EQUALIZER AMPLIFIER

YD3308F Description

www.DataSheet4U.com YOUDA INTEGRATED CIRCUIT YD3308F DUAL EQUALIZER AMPLIFIER WITH ALC * * YD3308F .
The YD3308F is a monolithic integrated circuit consisting of dual equalizer amplifier with ALC.

YD3308F Features

* Dual equalizer amplifier with built-in ALC circuit
* Low noise VNI=1.0μV (typ. )
* High open loop voltage gain: Gvo=80dB (typ. )
* Power voltage range: 4.5～14V
* Good ALC response balance between channels
* Not necessary the diode of transistor for ALC
* Built in power supply mu

📥 Download Datasheet

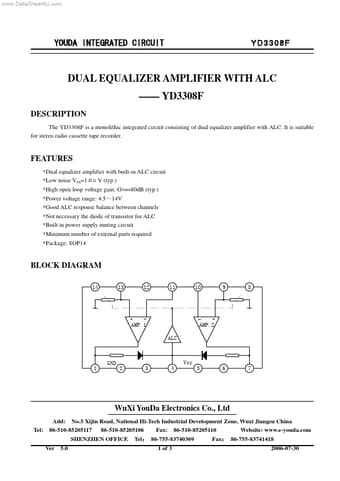

Preview of YD3308F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YD3308F
Manufacturer
Wuxi Youda electronics
File Size
105.23 KB
Datasheet
YD3308F_WuxiYoudaelectronics.pdf
Description
DUAL EQUALIZER AMPLIFIER
