XL3005 Datasheet - XLSEMI

XL3005 5A 220KHz 36V Buck LED Constant Current Driver

The XL3005 is a 220 KHz fixed frequency PWM buck (step-down) LED constant current driver, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequ.

XL3005 Features

* n Wide 8V to 36V Input Voltage Range n Output Current Sence Voltage is 0.21V n Maximum Duty Cycle 100% n Minimum Drop Out 0.3V n Fixed 220KHz Switching Frequency n 5A Constant Output Current Capability n Internal Optimize Power MOSFET n High efficiency n Excellent line and load regulation n Built in

XL3005-XLSEMI.pdf

Preview of XL3005 PDF

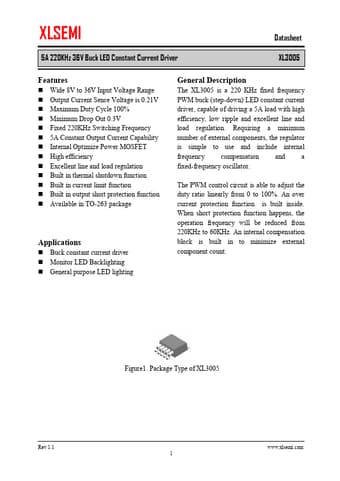

XL3005 Datasheet Preview Page 2 XL3005 Datasheet Preview Page 3

Datasheet Details

Part number:

XL3005

Manufacturer:

XLSEMI

File Size:

341.54 KB

Description:

5a 220khz 36v buck led constant current driver.
