XL3001 - 3A 220KHz 40V Buck LED Constant Current Driver

Datasheet Summary

Description

The XL3001 is a 220 KHz fixed frequency PWM buck (step-down) LED constant current driver, capable of driving a 3A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • Wide 8V to 40V Input Voltage Range.
  • Output Current Sense Voltage is 0.21V.
  • Maximum Duty Cycle 100%.
  • Minimum Drop Out 0.3V.
  • Fixed 220KHz Switching Frequency.
  • 3A Constant Output Current Capability.
  • Internal Optimize Power MOSFET.
  • High efficiency.
  • Excellent line and load regulation.
  • Built in thermal shutdown function.
  • Built in current limit function.
  • Available in SOP8-EP package.

📥 Download Datasheet

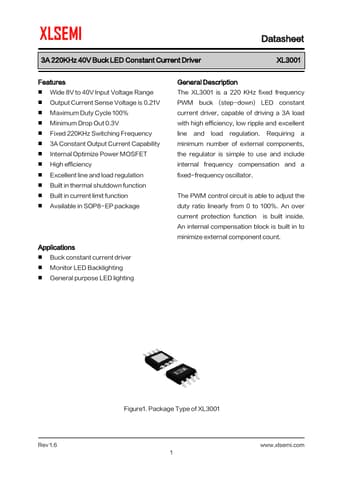

Datasheet preview – XL3001
