XL4005 Datasheet, Converter, XLSEMI

✔ XL4005 Features

Wide 5V to 32V Input Voltage Range
Output Adjustable from 0.8V to 30V
Maximum Duty Cycle 100%
Minimum Drop Out 0.6V
Fixed 300KHz Switching Frequency
5A Consta

✔ XL4005 Application

LCD Monitor and LCD TV
Digital Photo Frame
Set-up Box
ADSL Modem
Telecom / Networking Equipment G

PDF File Details

XLSEMI manufacturer logo

Part number:

XL4005

Manufacturer:

XLSEMI

File Size:

255.65kb

Download:

📄 Datasheet

Description:

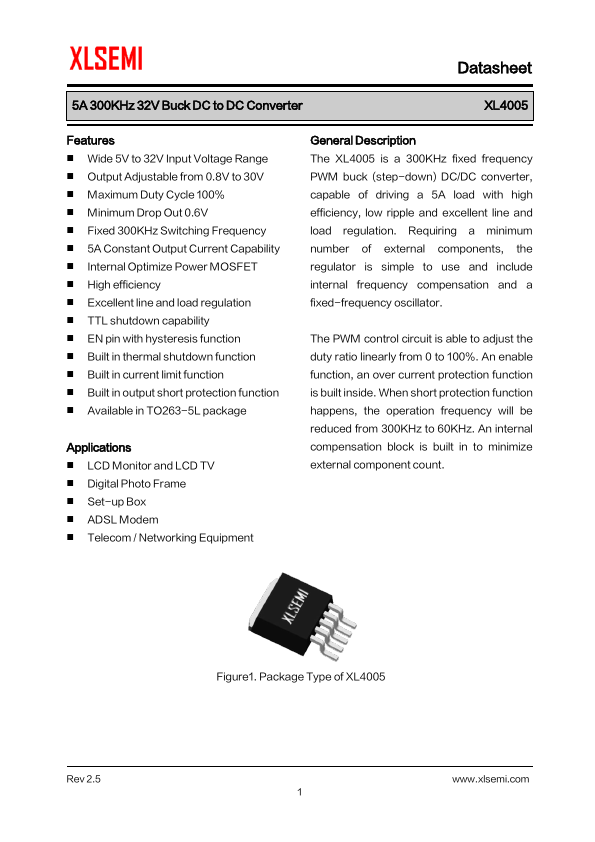

5a 300khz 32v buck dc to dc converter. The XL4005 is a 300KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 5A load with high efficiency, low r

📥 Download PDF (255.65kb)
