XL534

Latching Hall Switch Sensor

XL534 Datasheet (696.00 KB)

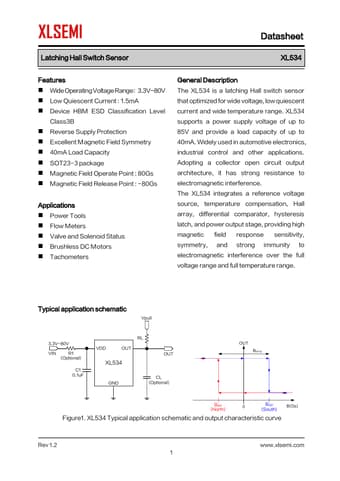

Preview of XL534 PDF

Datasheet Details

Part number:

XL534

Manufacturer:

XLSEMI

File Size:

696.00 KB

Description:

Latching hall switch sensor.

XL534 Features

* Wide Operating Voltage Range:3.3V~80V

* Low Quiescent Current : 1.5mA

* Device HBM ESD Classification Level Class3B

* Reverse Supply Protection

* Excellent Magnetic Field Symmetry

* 40mA Load Capacity

* SOT23-3 package

* Magnetic Field Operate Point : 80Gs

* Mag

XL534 General Description

The XL534 is a latching Hall switch sensor that optimized for wide voltage, low quiescent current and wide temperature range. XL534 supports a power supply voltage of up to 85V and provide a load capacity of up to 40mA. Widely used in automotive electronics, industrial control and other applications.
