XL561 Datasheet, Sensor, XLSEMI

XL561 Features

  • Sensor
  • Wide Operating Voltage Range:3.3V~45V
  • Low Quiescent Current : 2.5mA
  • Device HBM ESD Classification Level Class3B
  • Reverse Supply Protection

PDF File Details

Part number:

XL561

Manufacturer:

XLSEMI

File Size:

465.37kb

Download:

📄 Datasheet

Description:

Omnipolar hall switch sensor. The XL561 is an omnipolar Hall switch sensor that optimized for wide voltage, low quiescent current and wide temperature range. XL561

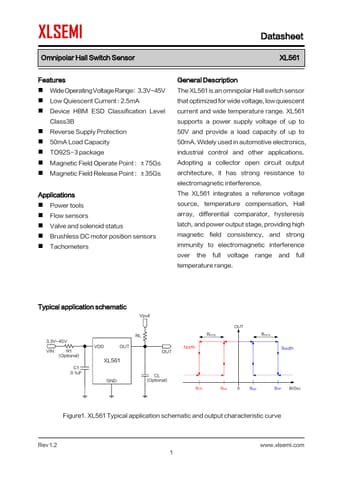

Datasheet Preview: XL561 📥 Download PDF (465.37kb)
Page 2 of XL561 Page 3 of XL561

XL561 Application

  • Applications
  • Power tools
  • Flow sensors
  • Valve and solenoid status
  • Brushless DC motor position sensors
