XL9004 - 2.0A 200KHz 50V Synchronous Buck DC to DC Converter

XL9004 Description

Datasheet 2.0A 200KHz 50V Synchronous Buck DC to DC Converter With CV/CC Loop XL9004 .
The XL9004 is a 200KHz fixed frequency PWM synchronous buck DC/DC converter, capable of driving a 2.

XL9004 Features

* Operation Voltage：5V~45V
* Output Adjustable from 1.25V to 40V
* Maximum Duty Cycle up to 100%
* Feedback Voltage Accuracy ±2%
* Fixed 200KHz Switching Frequency
* 2.0A Constant Output Current Capability
* Internal Optimize Power MOSFET
* High efficiency up to 95%

XL9004 Applications

* Automotive Electronics
* Industrial Control
* Networking Equipment
* Internet of Things 5V~45V CSN CSP L1 VIN SW CC XL9004 VC FB CIN GND COUT VOUT=1.25
* (1+R2/R1) RCS R2 R1 Efficiency(%) Efficiency VS Output current 100 95 90 85 80 75 70 65 60 VIN=8V,VOUT

📥 Download Datasheet

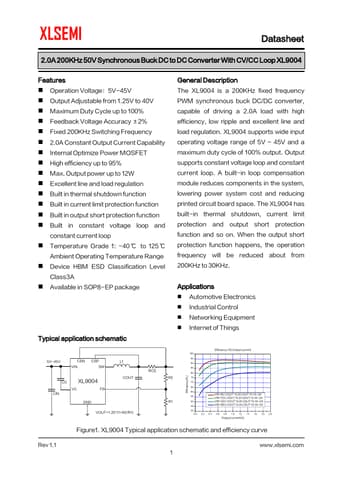

Preview of XL9004 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XL9004
Manufacturer
XLSEMI
File Size
753.22 KB
Datasheet
XL9004-XLSEMI.pdf
Description
2.0A 200KHz 50V Synchronous Buck DC to DC Converter
