XL9026, 6A 120KHz 50V Synchronous Buck DC to DC Converter

Datasheet 6A 120KHz 50V Synchronous Buck DC to DC Converter XL9026 .
The XL9026 is a 120KHz fixed frequency PWM synchronous buck DC/DC converter, capable of driving a 6A load with high efficiency, low ripple and excelle.

datasheet Preview Page 1 from Datasheet4u.com

XL9026-XLSEMI.pdf

XL9026 Datasheet Preview — Preview of XL9026 PDF

Datasheet Details

Part number:

XL9026

Manufacturer:

XLSEMI

File Size:

757.37 KB

Description:

6A 120KHz 50V Synchronous Buck DC to DC Converter

Features

* Operation Voltage：5V~45V
* Output Adjustable from 1.25V to 40V
* Maximum Duty Cycle up to 100%
* Feedback Voltage Accuracy ±2%
* Fixed 120KHz Switching Frequency
* 6A Constant Output Current Capability
* Internal Optimize Power MOSFET
* High efficiency up to 96%

Applications

* Automotive Electronics
* Industrial Control
* Networking Equipment

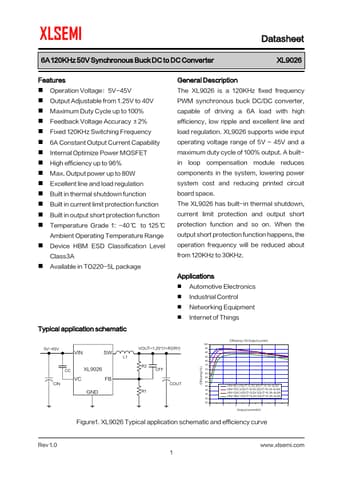

* Internet of Things 5V~45V VIN VOUT=1.25
* (1+R2/R1) SW L1 CC XL9026 VC FB CIN GND R2 CFF COUT R1 Efficiency(%) 100 95 90 85 80 75 70 65 60 55 50 45 40 35 30 0 Efficiency VS Output current VIN=8V,VO
