XPT9305 - Class-D Audio Power Amplifier

XPT

The XPT9305 by XPT is a Class-D Audio Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

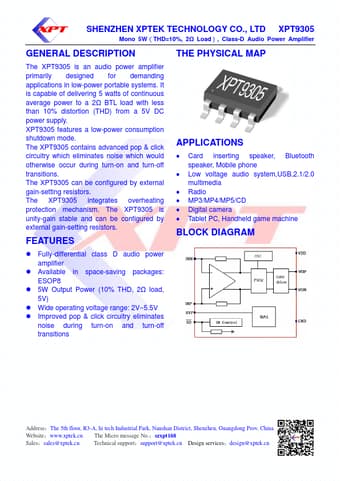

XPT9305 Class-D Audio Power Amplifier by XPT - Datasheet Preview — Official preview page of the **XPT9305** Class-D Audio Power Amplifier datasheet (XPT).

Datasheet Details

Part number	XPT9305
Manufacturer	XPT
File Size	320.07 KB
Description	Class-D Audio Power Amplifier
Datasheet	XPT9305-XPT.pdf
Additional preview pages of the XPT9305 datasheet.

XPT9305 Product details

Description

THE PHYSICAL MAP The XPT9305 is an audio power amplifier primarily designed for demanding applications in low-power portable systems.It is capable of delivering 5 watts of continuous average power to a 2Ω BTL load with less than 10% distortion (THD) from a 5V DC power supply.XPT9305

Features

a low-power consumption shutdown mode. The XPT9305 contains advanced pop & click circuitry which eliminates noise which would otherwise occur during turn-on and turn-off transitions. The XPT9305 can be configured by external gain-setting resistors. The XPT9305 integrates overheating protection mechanism. The XPT9305 is unity-gain stable and can be configured by external gain-setting resistors.
