XC5202 - Field Programmable Gate Arrays

This page provides the datasheet information for the XC5202, a member of the XC5200 Field Programmable Gate Arrays family.

Datasheet Summary

Features

  • Low-cost, register/latch rich, SRAM based reprogrammable architecture - 0.5µm three-layer metal CMOS process technology - 256 to 1936 logic cells (3,000 to 23,000 “gates”) - Price competitive with Gate Arrays.
  • System Level Features - System performance beyond 50 MHz - 6 levels of interconnect hierarchy - VersaRing™ I/O Interface for pin-locking - Dedicated carry logic for high-speed arithmetic functions - Cascade chain for wide input functions - Built-in IEEE 1149.1 JTAG bound.

📥 Download Datasheet

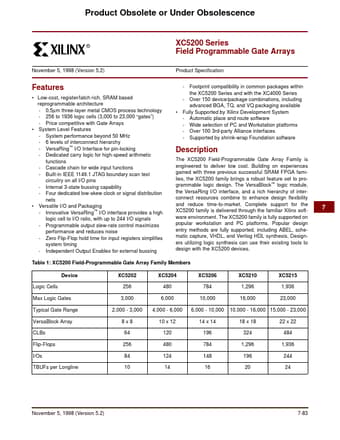

Datasheet preview – XC5202

Datasheet Details

Part number XC5202
Manufacturer Xilinx
File Size 568.70 KB
Description Field Programmable Gate Arrays
Datasheet download datasheet XC5202 Datasheet
Additional preview pages of the XC5202 datasheet.
Other Datasheets by Xilinx

Full PDF Text Transcription

Click to expand full text
Product Obsolete or Under Obsolescence 0 R XC5200 Series Field Programmable Gate Arrays November 5, 1998 (Version 5.2) 0 7* Product Specification Features • Low-cost, register/latch rich, SRAM based reprogrammable architecture - 0.5µm three-layer metal CMOS process technology - 256 to 1936 logic cells (3,000 to 23,000 “gates”) - Price competitive with Gate Arrays • System Level Features - System performance beyond 50 MHz - 6 levels of interconnect hierarchy - VersaRing™ I/O Interface for pin-locking - Dedicated carry logic for high-speed arithmetic functions - Cascade chain for wide input functions - Built-in IEEE 1149.
