XCR3032 32 Macrocell CPLD

The XCR3032 CPLD (Complex Programmable Logic Device) is the first in a family of CoolRunner® CPLDs from Xilinx. These devices combine high speed and zero power in a 32 macrocell CPLD. With the FZP design technique, the XCR3032 offers true pin-to-pin speeds of 8 ns, while simultaneously delivering po.

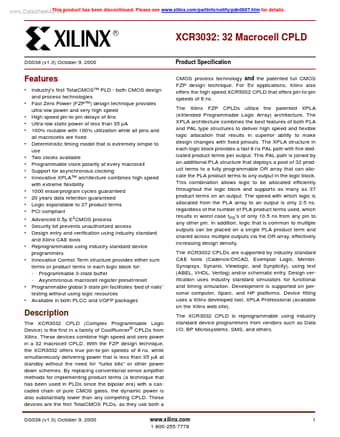

This product has been discontinued. Please see www.xilinx.com/partinfo/notify/pdn0007.htm for details. www.DataSheet4U.com 0 APPLICATION NOTE R XCR3032: 32 Macrocell CPLD 0 14 DS038 (v1.3) October 9, 2000 Product Specification CMOS process technology and the patented full CMOS FZP design technique. For 5V applications, Xilinx also offers the high speed XCR5032 CPLD that offers pin-to-pin speeds of 6 ns. The Xilinx FZP CPLDs utilize the patented XPLA (eXtended Programmable Logic Array) .

XCR3032 Features

* of both PLA and PAL type structures to deliver high speed and flexible logic allocation that results in superior ability to make design changes with fixed pinouts. The XPLA structure in each logic block provides a fast 8 ns PAL path with five dedicated product terms per output. This PAL path is join
