Description
Xiner / Technical Information XNS06S82F6 / IPM /.
XNS06S82F6Trench FS-IGBT,DIP24 IPM,、PMSM 。 XNS06S82F6 is an Advanced DIP24 IPM Based on Trench FS-IGBT Technology, Providing a Fully-featured, H.
Features
* Including Under-voltage Lockouts, Over-current Shutdown, Thermal Monitoring, Fault Reporting.
* XNS06S82F6HVIC,IGBT,。 XNS06S82F6 Combines High Speed HVIC Provides Opto-Coupler-Less Single-Supply IGBT Gate Driving Capability that Further Reduce the Overall Size of the Inverter System Design.

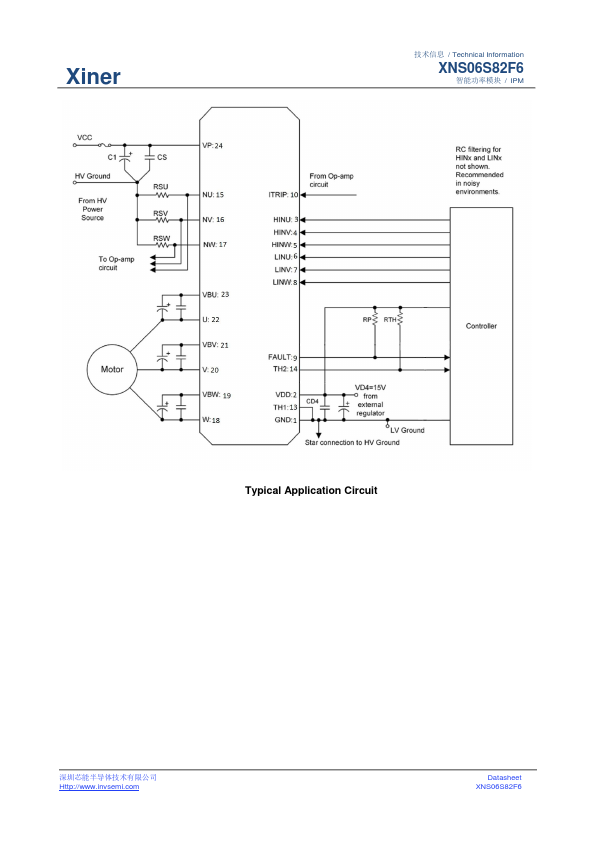

Applications
* Motion Control
* Home Appliance / Industrial Motor
Http://www. invsemi. com

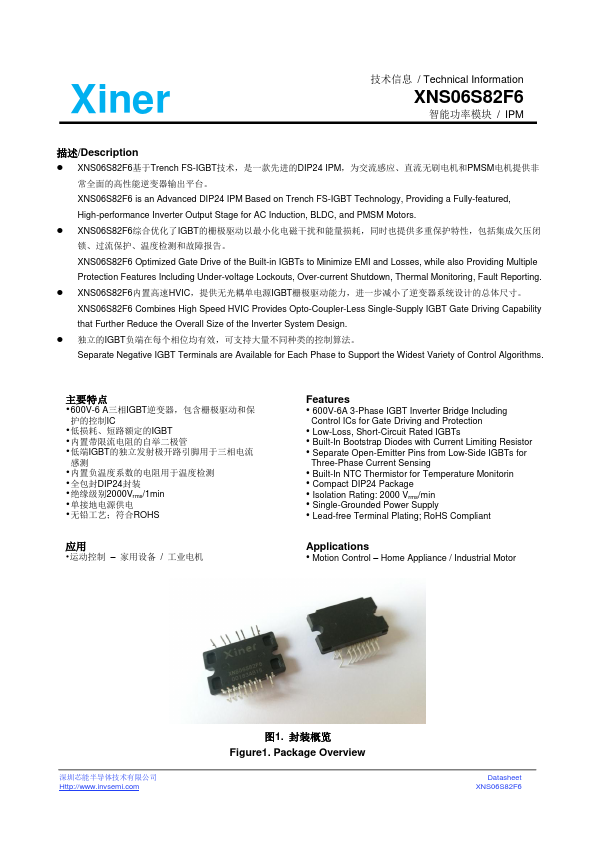

1. Figure1. Package Overview
Datasheet XNS06S82F6
Xiner
/ Technical Information
XNS06S82F6
/ IPM

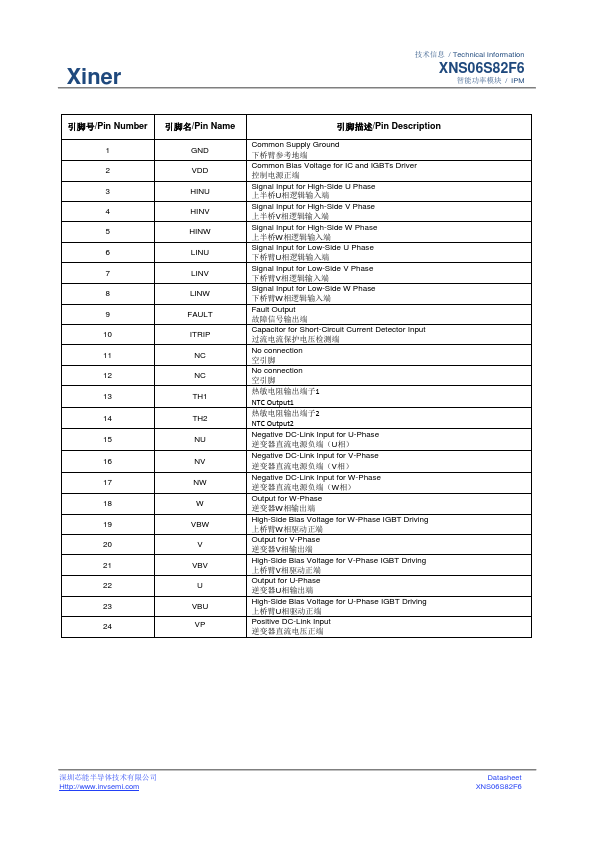

/Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
/Pin Name GND VDD HINU HI
