XNS15N120T Datasheet, Igbt, Xiner

XNS15N120T Features

  • Igbt
  • Advanced Trench+FS (Field Stop) IGBT technology
  • Low Collector-Emitter Saturation voltage, typical data is 2.1V @ 15A.
  • Easy parallel switching capability du

PDF File Details

Part number:

XNS15N120T

Manufacturer:

Xiner

File Size:

199.72kb

Download:

📄 Datasheet

Description:

Trench-fs igbt.

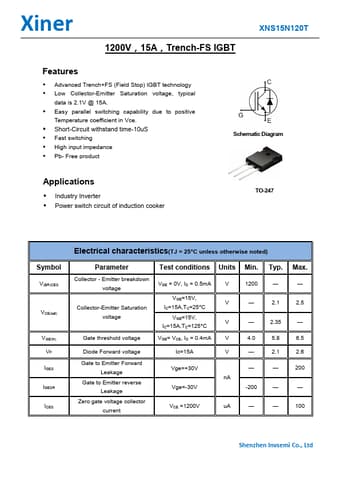

Datasheet Preview: XNS15N120T 📥 Download PDF (199.72kb)

XNS15N120T Application

  • Applications
  • Industry Inverter
  • Power switch circuit of induction cooker TO-247 Symbol V(BR)CES VCE(sat) VGE(th) VF IGES IGESR
