XNS15S72F6 - IPM

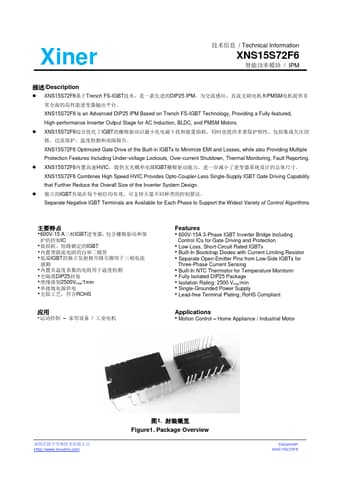

XNS15S72F6 Datasheet Preview — Preview of XNS15S72F6 PDF

Datasheet Details

Part number	XNS15S72F6
Manufacturer	Xiner
File Size	607.76 KB
Description	IPM
Datasheet	XNS15S72F6-Xiner.pdf

XNS15S72F6 Product details

Description

XNS15S72F6Trench FS-IGBT，DIP25 IPM，、PMSM 。 XNS15S72F6 is an Advanced DIP25 IPM Based on Trench FS-IGBT Technology, Providing a Fully-featured, High-performance Inverter Output Stage for AC Induction, BLDC, and PMSM Motors. XNS15S72F6IGBT，，、、。 XNS15S72F6 Optimized Gate Drive of the Built-in IGBTs to Minimize EMI and Losses, while also Providing Multiple Protection

Features

Including Under-voltage Lockouts, Over-current Shutdown, Thermal Monitoring, Fault Reporting.
XNS15S72F6HVIC，IGBT，。 XNS15S72F6 Combines High Speed HVIC Provides Opto-Coupler-Less Single-Supply IGBT Gate Driving Capability that Further Reduce the Overall Size of the Inverter System Design.
IGBT，。 Separate Negative IGBT Terminals are Available for Each Phase to Support the Widest Variety of Control Algorithms.
600V-15 AIGBT， IC.
、IGBT.
IGBT.
