XB6096 One Cell Lithium-ion/Polymer Battery Protection IC

The XB6096 Series product is a high integration solution for lithiumion/polymer battery protection. XB6096 Series contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB6096 Series is put into an ultra-small DFN2X2-6 package and only one external component mak.

XB6096 Features

* Protection of Charger Reverse Connection

* Protection of Battery Cell Reverse Connection

* Integrate Advanced Power MOSFET with Equivalent of 26mΩ RDS(ON)

* Ultra-small DFN2X2-6 Package

* Only One External Capacitor Required

* Over-temperature Protection

* Overcharge Cu

XB6096 Datasheet (859.55 KB)

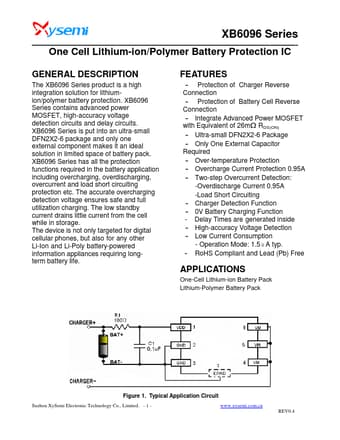

XB6096 Datasheet Preview — Preview of XB6096 PDF

Datasheet Details

Part number:

XB6096

Manufacturer:

XySemi

File Size:

859.55 KB

Description:

One cell lithium-ion/polymer battery protection ic.
