XB6096JS Datasheet - XySemi

One Cell Lithium-ion/Polymer Battery Protection

XB6096JS Features

* Protection of Charger Reverse Connection

* Protection of Battery Cell Reverse Connection

* Integrate Advanced Power MOSFET with Equivalent of 52mΩ RSS(ON)

* Ultra-small DFN2X2-6 Package

* Only One External Capacitor Required

* Over-temperature Protection

* Overcharge Current P

XB6096JS General Description

The XB6096JS product is a high integration solution for lithiumion/polymer battery protection. XB6096JS contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB6096JS is put into an ultra-small DFN2X2-6 package and only one external component makes it an ideal .

XB6096JS Datasheet (1.61 MB)

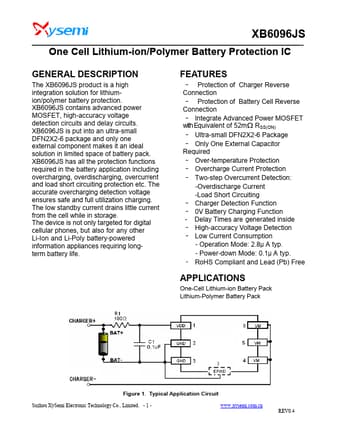

XB6096JS Datasheet Preview — Preview of XB6096JS PDF

Datasheet Details

Part number:

XB6096JS

Manufacturer:

XySemi

File Size:

1.61 MB

Description:

One cell lithium-ion/polymer battery protection.
XB6096JS ______________________________________ __________________________________________________________________________________ _ One Cell Lithium-.
