XB6096M2, XB6096 One Cell Lithium-ion/Polymer Battery Protection IC

Description

XB6096 Series ______________________________________ ____________________________________________________________________ ___________ _ One Cell Lithi.
The XB6096 Series product is a high integration solution for lithiumion/polymer battery protection.

📥 Download Datasheet

XB6096M2 Datasheet Preview — This datasheet PDF includes multiple part numbers: XB6096M2, XB6096. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: XB6096M2, XB6096
Manufacturer: XySemi
File Size: 859.55 KB
Datasheet: XB6096-XySemi.pdf
Description: One Cell Lithium-ion/Polymer Battery Protection IC
Note: This datasheet PDF includes multiple part numbers: XB6096M2, XB6096.
Please refer to the document for exact specifications by model.

Features

* Protection of Charger Reverse Connection
* Protection of Battery Cell Reverse Connection
* Integrate Advanced Power MOSFET with Equivalent of 26mΩ RDS(ON)
* Ultra-small DFN2X2-6 Package
* Only One External Capacitor Required
* Over-temperature Protection
* Overcharge Cu

Applications

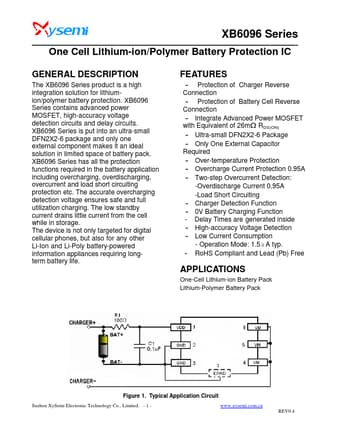

* One-Cell Lithium-ion Battery Pack Lithium-Polymer Battery Pack Figure 1. Typical Application Circuit Suzhou XySemi Electronic Technology Co. , Limited. - 1 - www. xysemi. com. cn REV0.4 XB6096 Series ______________________________________ ____________________________________________________ _______
