SH100M0680B7F-1636 Datasheet - YAGEO

SH100M0680B7F-1636 Aluminum Electrolytic Capacitors

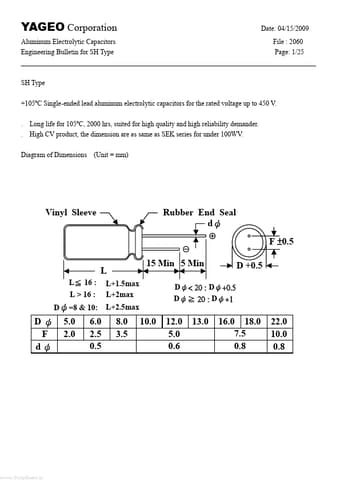

YAGEO Corporation Date: 04/15/2009 Aluminum Electrolytic Capacitors File : 2060 Engineering Bulletin for SH Type Page: 1/25 ______________________________________________________________________________________ SH Type +105ºC Single-ended lead aluminum electrolytic capacitors for the rated voltage up to 450 V. . Long life for 105ºC, 2000 hrs, suited for high quality and high reliability demander. . High CV product, the dimension are as same as SEK series for under 100WV. Diagram of Dim.

SH100M0680B7F-1636 Datasheet (302.37 KB)

Preview of SH100M0680B7F-1636 PDF

Datasheet Details

Part number:

SH100M0680B7F-1636

Manufacturer:

YAGEO

File Size:

302.37 KB

Description:

Aluminum electrolytic capacitors.
