XP10NA014MT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10NA014MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼ .
XP10NA014 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

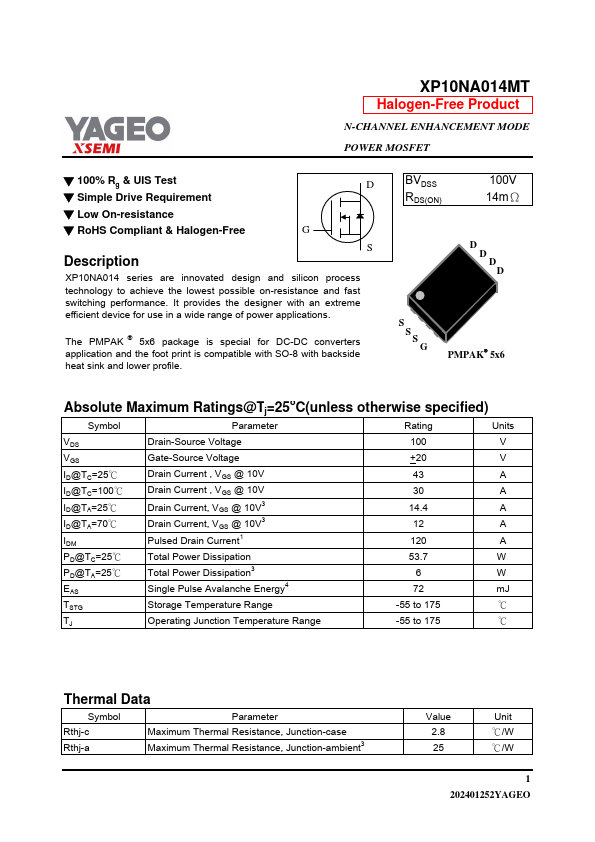

XP10NA014MT Datasheet Preview — Preview of XP10NA014MT PDF

Datasheet Specifications

Part number: XP10NA014MT
Manufacturer: YAGEO
File Size: 361.79 KB
Datasheet: XP10NA014MT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 100V 14mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
