XP1003-BD

Power Amplifier

XP1003-BD Datasheet (556.31 KB)

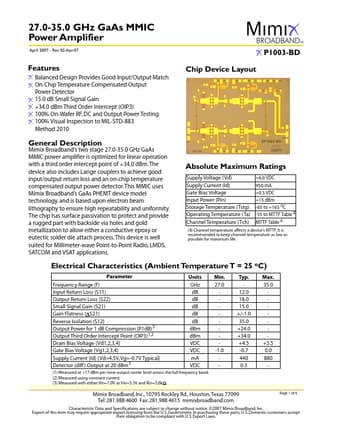

Preview of XP1003-BD PDF Datasheet

Datasheet Details

Part number:

XP1003-BD

Manufacturer:

Mimix Broadband

File Size:

556.31 KB

Description:

Power amplifier

XP1003-BD Features

* Balanced Design Provides Good Input/Output Match On-Chip Temperature Compensated Output Power Detector 15.0 dB Small Signal Gain +34.0 dBm Third Order Intercept (OIP3) 100% On-Wafer RF, DC and Output Power Testing 100% Visual Inspection to MIL-STD-883 Method 2010 Chip Device Layout General Descrip

XP1003-BD General Description

Mimix Broadband’s two stage 27.0-35.0 GHz GaAs MMIC power amplifier is optimized for linear operation with a third order intercept point of +34.0 dBm.The device also includes Lange couplers to achieve good input/output return loss and an on-chip temperature compensated output power detector.This MMI.
