XP1011ALMT - P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP1011ALMT Description

XP1011ALMT Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ RoH.
XP1011AL series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP1011ALMT Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) -100V 52mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin

📥 Download Datasheet

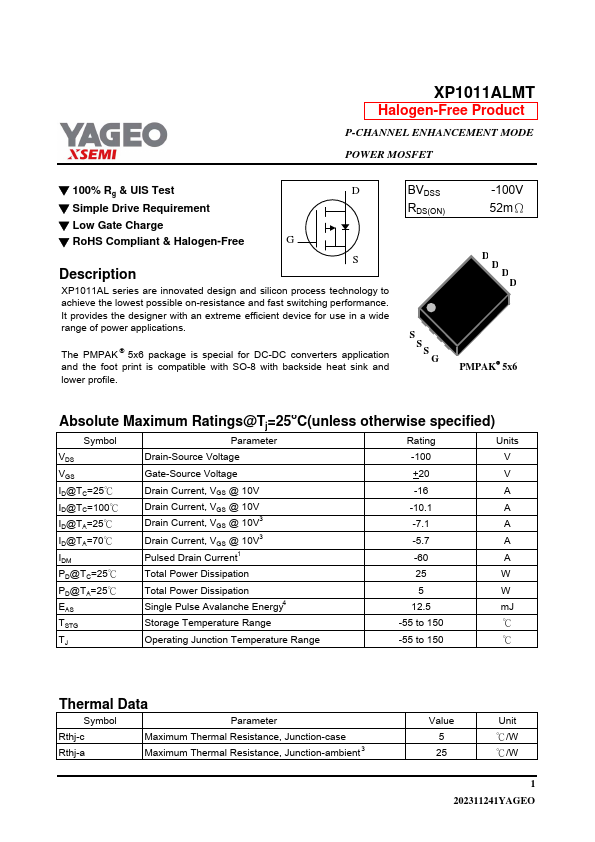

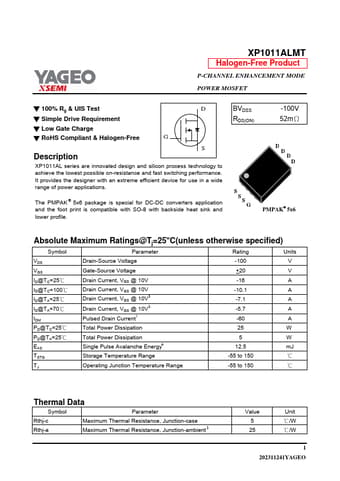

Preview of XP1011ALMT PDF

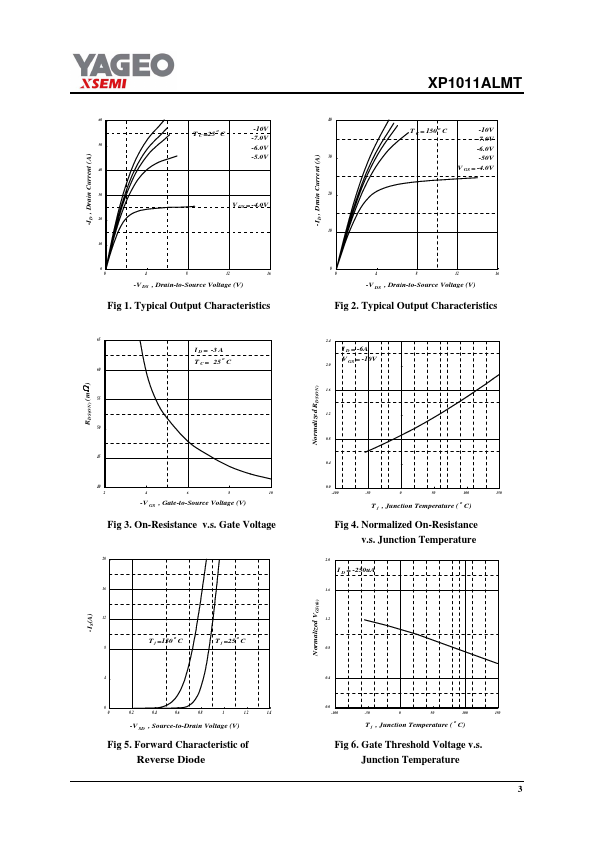

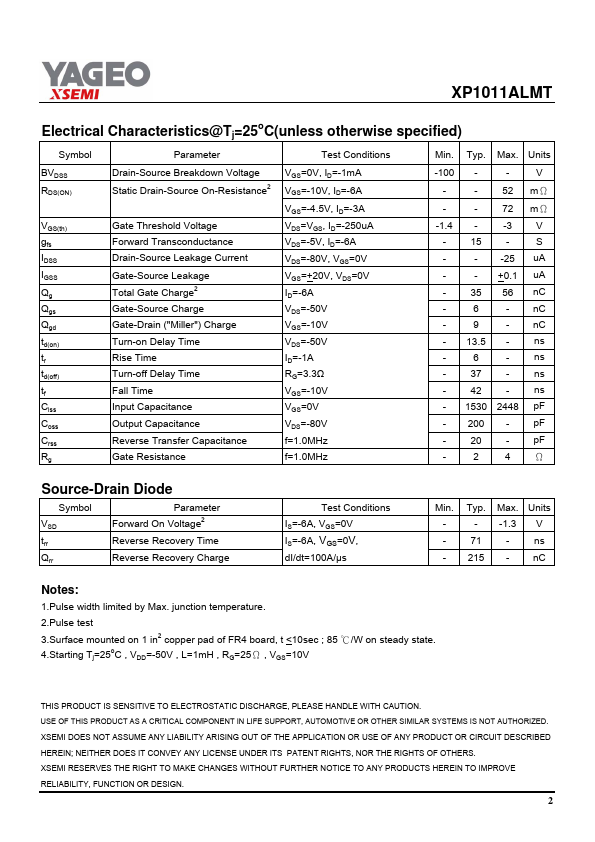

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP1011ALMT
Manufacturer
YAGEO
File Size
361.52 KB
Datasheet
XP1011ALMT-YAGEO.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET
