XP10A035MT - DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP10A035MT Description

▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ RoHS Compliant & Halogen-Free XP10A035MT Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT.
XP10A035 series are innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance.

XP10A035MT Applications

* PMPAK ® 5x6 dual pad provide superior thermal performance and is design for surface mount applications. S1 G1 S2 G2 S1 G1 S2 G2 D1 D1 D2 D2 PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC. (unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 100 V VGS Gate-So

📥 Download Datasheet

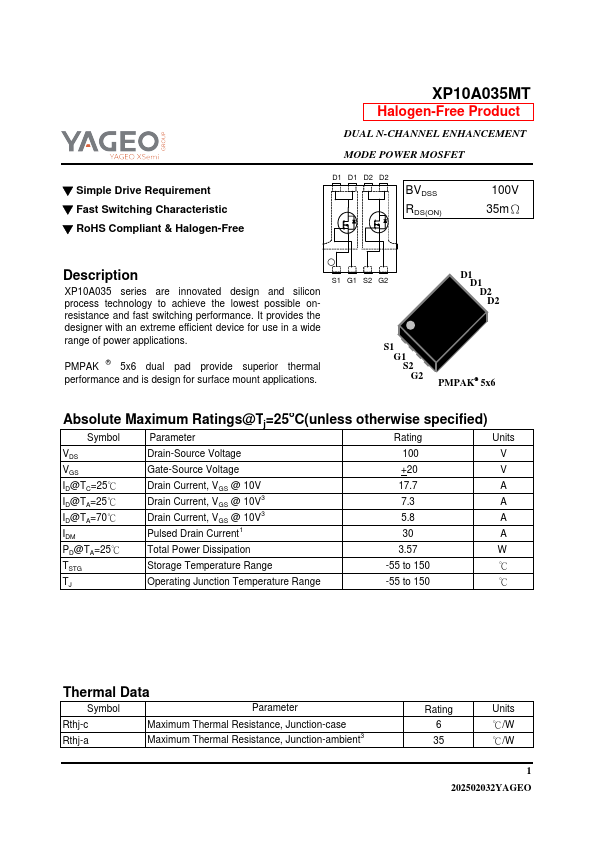

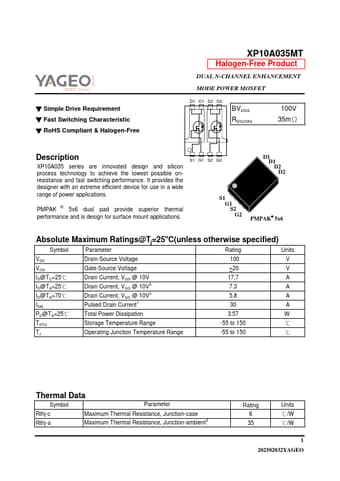

Preview of XP10A035MT PDF

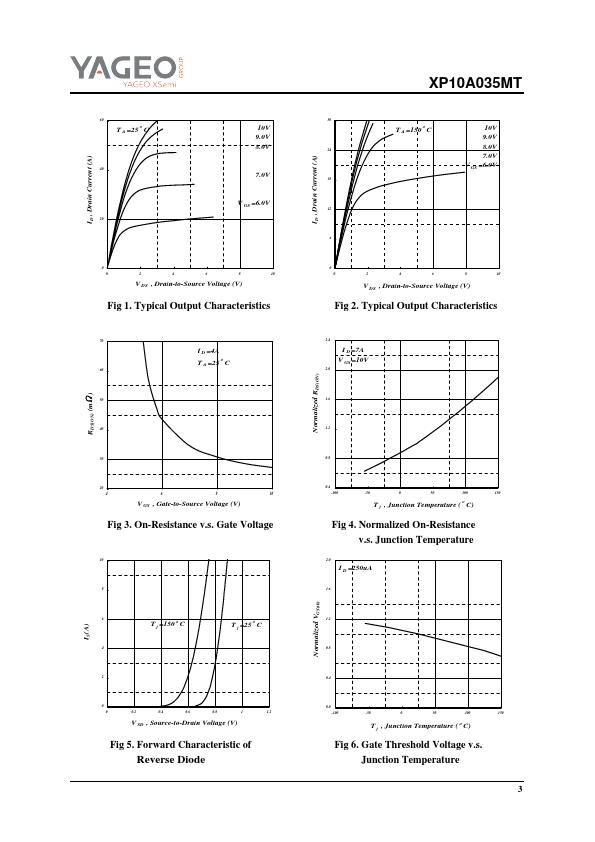

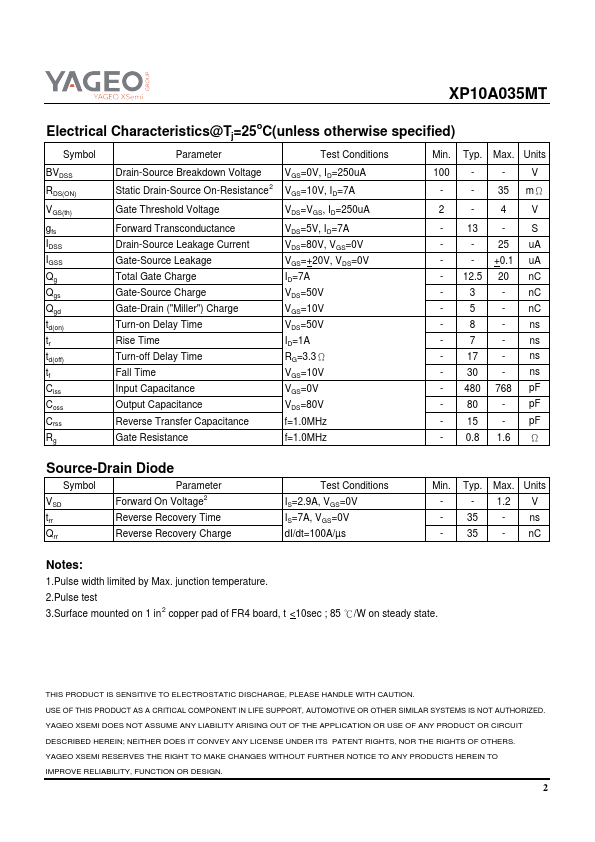

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP10A035MT
Manufacturer
YAGEO
File Size
667.08 KB
Datasheet
XP10A035MT-YAGEO.pdf
Description
DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET
