XP10A185M - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP10A185M Description

XP10A185M Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ Low Gate Charge ▼.
XP10A185 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP10A185M Applications

* The SO-8 package is widely preferred for all commercial- G1 industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID D1 G2 S1 100V 185mΩ 2.2A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified)

📥 Download Datasheet

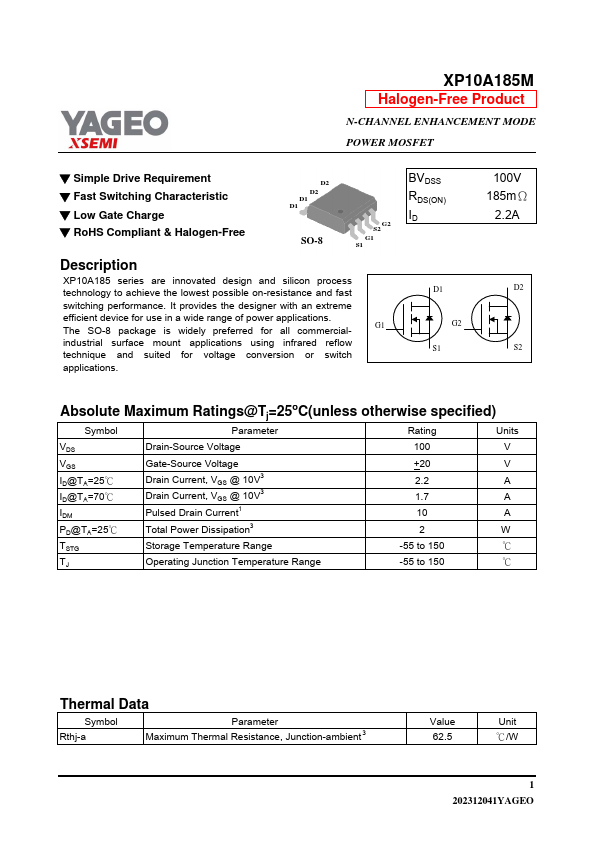

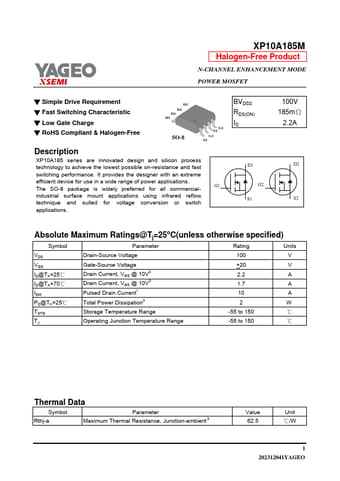

Preview of XP10A185M PDF

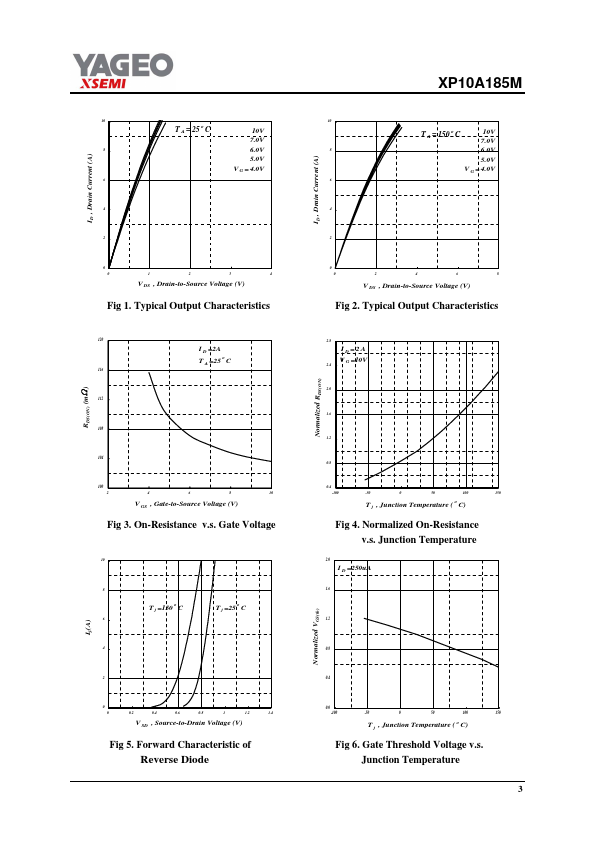

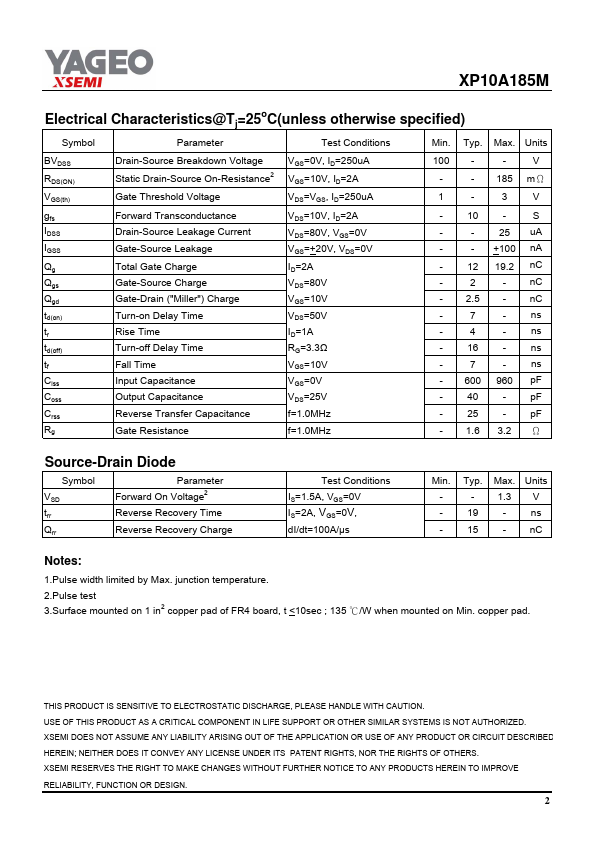

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP10A185M
Manufacturer
YAGEO
File Size
245.74 KB
Datasheet
XP10A185M-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
