XP10A045YT - Dual N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP10A045YT Description

XP10A045YT Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ RoHS Compli.
G2 XP10A045 series are innovated design and silicon PMPAK® 3x3 process technology to achieve the lowest possible on- resistance and fast switching.

XP10A045YT Applications

* The PMPAK ® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. D1 D1 D2 D2 S1 G1 S2 G2 Absolute Maximum Ratings@Tj=25oC. (unless otherwise specified) Symbol Parameter Rating

📥 Download Datasheet

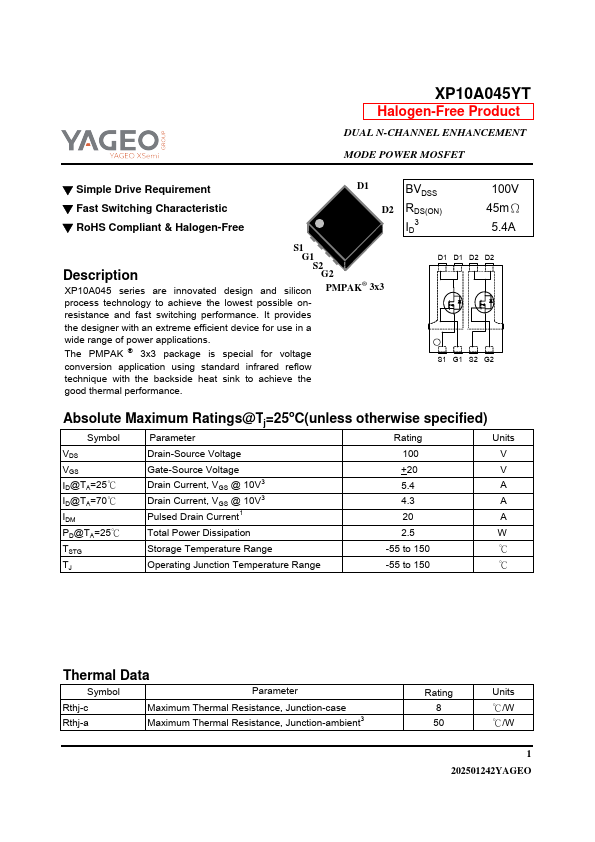

Preview of XP10A045YT PDF

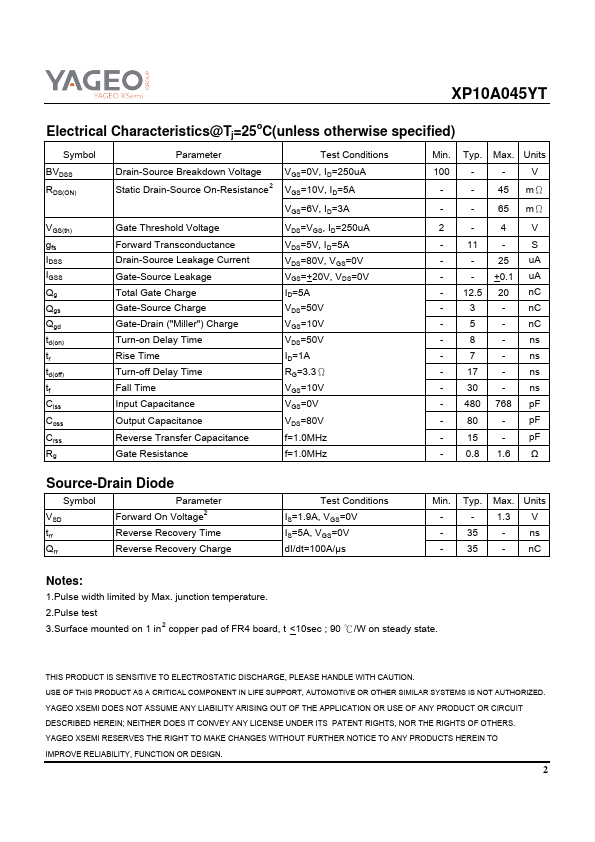

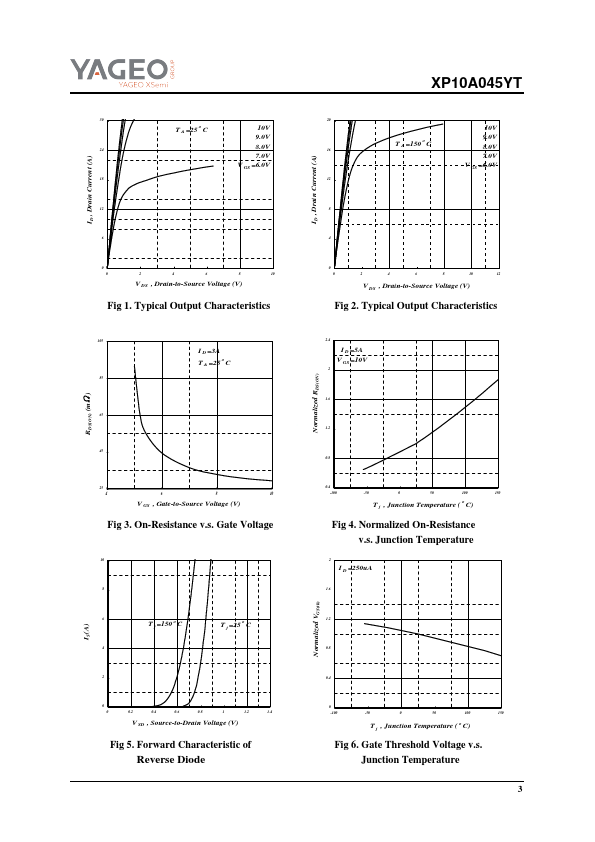

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP10A045YT
Manufacturer
YAGEO
File Size
727.76 KB
Datasheet
XP10A045YT-YAGEO.pdf
Description
Dual N-CHANNEL ENHANCEMENT MODE POWER MOSFET
