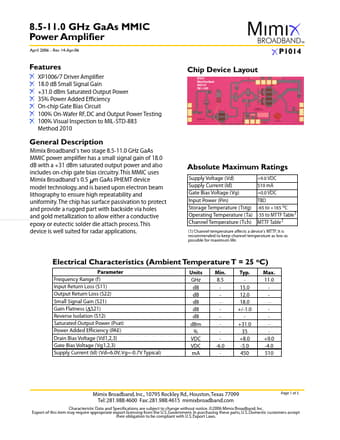

XP1014 GaAs MMIC Power Amplifier

Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (Pin) Storage Temperature (Tstg) Operating Temperature (Ta) Channel Temperature (Tch) +9.0 VDC 510 mA +0.0 VDC TBD -65 to +165 OC -55 to MTTF Table1 MTTF Table 1 (1) Channel temperature affects a de.

XP1014 Features

* XP1006/7 Driver Amplifier 18.0 dB Small Signal Gain +31.0 dBm Saturated Output Power 35% Power Added Efficiency On-chip Gate Bias Circuit 100% On-Wafer RF, DC and Output Power Testing 100% Visual Inspection to MIL-STD-883 Method 2010 Mimix Broadband’s two stage 8.5-11.0 GHz GaAs MMIC power amplifier
