XP1010

GaAs MMIC Power Amplifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Amphenol PCD ELXP10100E 3.5MM/.138" R/A PLUG W/EARS BLK DigiKey 0 100 units
$4.56

XP1010 Datasheet (196.31 KB)

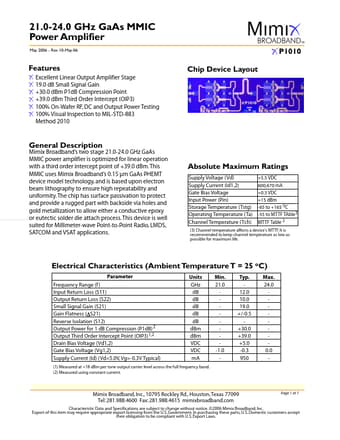

Preview of XP1010 PDF Datasheet

Datasheet Details

Part number:

XP1010

Manufacturer:

Mimix Broadband

File Size:

196.31 KB

Description:

Gaas mmic power amplifier

XP1010 Features

* Excellent Linear Output Amplifier Stage 19.0 dB Small Signal Gain +30.0 dBm P1dB Compression Point +39.0 dBm Third Order Intercept (OIP3) 100% On-Wafer RF, DC and Output Power Testing 100% Visual Inspection to MIL-STD-883 Method 2010 Mimix Broadband’s two stage 21.0-24.0 GHz GaAs MMIC power amplifi

XP1010 General Description

Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id1,2) Gate Bias Voltage Input Power (Pin) Storage Temperature (Tstg) Operating Temperature (Ta) Channel Temperature (Tch) +5.5 VDC 600,670 mA +0.3 VDC +15 dBm -65 to +165 OC -55 to MTTF TAble3 MTTF Table 3 (3) Channel temperature affect.
