XP1013-BD Datasheet, Amplifier, Mimix Broadband

XP1013-BD Features

  • Amplifier Excellent Saturated Output Stage Competitive RF/DC Bias Pin for Pin Replacement 20.0 dB Small Signal Gain +24.0 dBm Saturated Output Power 100% On-Wafer RF, DC and Output Power Testing

PDF File Details

Part number:

XP1013-BD

Manufacturer:

Mimix Broadband

File Size:

462.08kb

Download:

📄 Datasheet

Description:

Power amplifier. Mimix Broadband’s three stage 17.0-26.0 GHz GaAs MMIC power amplifier has a small signal gain of 20.0 dB with a +24.0 dBm saturated o

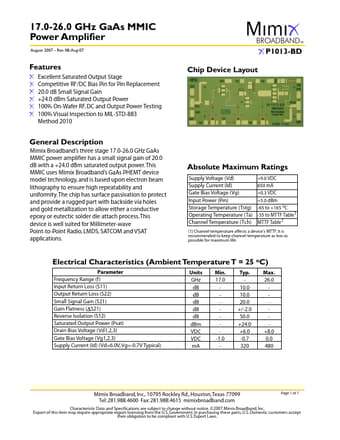

Datasheet Preview: XP1013-BD 📥 Download PDF (462.08kb)
Page 2 of XP1013-BD Page 3 of XP1013-BD

XP1013-BD Application

  • Applications Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (Pin) Storage Temperature (Tstg)
