XP1011 Datasheet, Amplifier, Mimix Broadband

XP1011 Features

  • Amplifier Excellent Linear Output Amplifier Stage 21.0 dB Small Signal Gain +36.0 dBm Third Order Intercept (OIP3) +27.0 dBm Output P1dB Compression Point 100% On-Wafer RF, DC and Output Power Te

PDF File Details

Part number:

XP1011

Manufacturer:

Mimix Broadband

File Size:

182.94kb

Download:

📄 Datasheet

Description:

Gaas mmic power amplifier. Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id1,2,3) Gate Bias Voltage Input Power (Pin) Storage Temperature (Tstg)

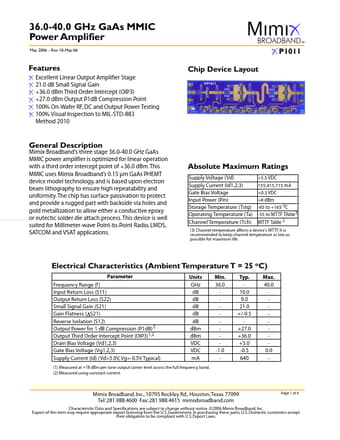

Datasheet Preview: XP1011 📥 Download PDF (182.94kb)
Page 2 of XP1011 Page 3 of XP1011

XP1011 Application

  • Applications General Description Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id1,2,3) Gate Bias Voltage Input Power (Pin) Storag
