XP1013 Datasheet, Amplifier, Mimix Broadband

XP1013 Features

• Amplifier Excellent Saturated Output Stage Competitive RF/DC Bias Pin for Pin Replacement 20.0 dB Small Signal Gain +24.0 dBm Saturated Output Power 100% On-Wafer RF, DC and Output Power Testing

PDF File Details

Part number:

XP1013

Manufacturer:

Mimix Broadband

File Size:

566.65kb

Download:

📄 Datasheet

Description:

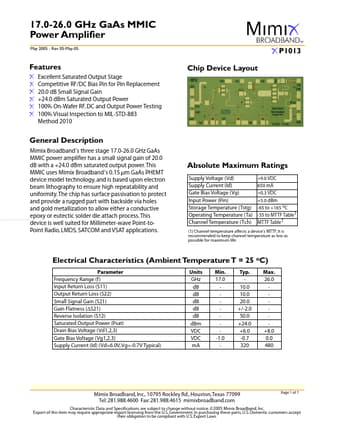

Gaas mmic power amplifier. Mimix Broadband’s three stage 17.0-26.0 GHz GaAs MMIC power amplifier has a small signal gain of 20.0 dB with a +24.0 dBm saturated o

XP1013 Application

• Applications Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id) Gate Bias Voltage (Vg) Input Power (Pin) Storage Temperature (Tstg)
