XP1012 Datasheet, Amplifier, Mimix Broadband

XP1012 Features

  • Amplifier Excellent Linear Output Amplifier Stage 15.0 dB Small Signal Gain +28.0 dBm Output P1dB Compression Point +37.0 dBm Third Order Intercept (OIP3) 100% On-Wafer RF, DC and Output Power Te

PDF File Details

Part number:

XP1012

Manufacturer:

Mimix Broadband

File Size:

184.49kb

Download:

📄 Datasheet

Description:

Gaas mmic power amplifier. Mimix Broadband’s two stage 37.0-40.0 GHz GaAs MMIC power amplifier is optimized for linear operation with a third order intercept po

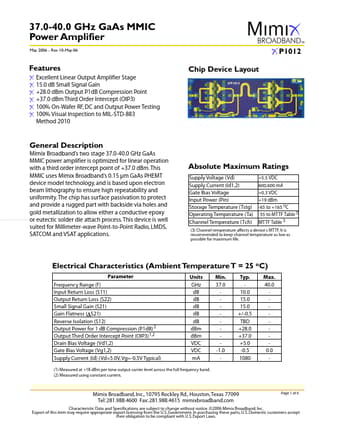

Datasheet Preview: XP1012 📥 Download PDF (184.49kb)
Page 2 of XP1012 Page 3 of XP1012

XP1012 Application

  • Applications Absolute Maximum Ratings Supply Voltage (Vd) Supply Current (Id1,2) Gate Bias Voltage Input Power (Pin) Storage Temperature (Tstg) Op

TAGS

XP1012
GaAs
MMIC
Power
Amplifier
Mimix Broadband
