XP10NA8R2LMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10NA8R2LMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Low On-resistance ▼.
XP10NA8R2L series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

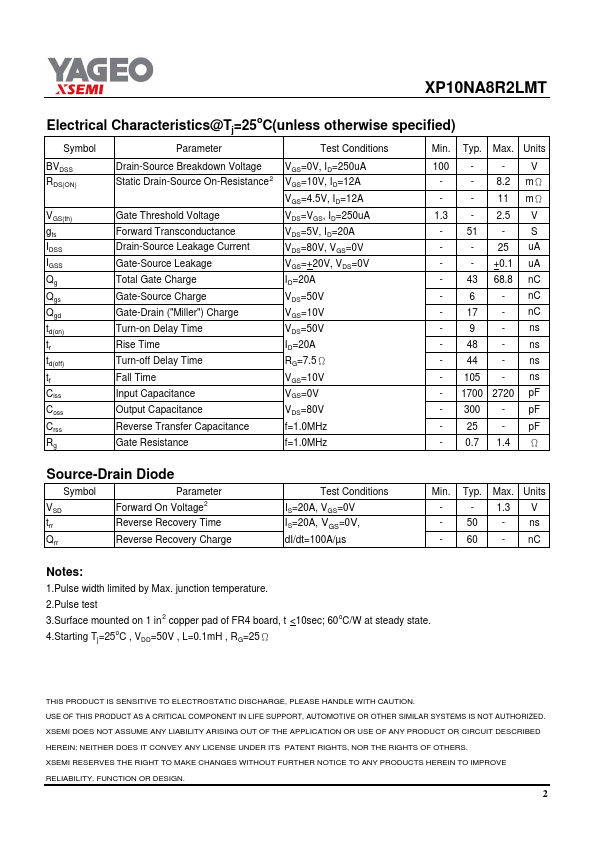

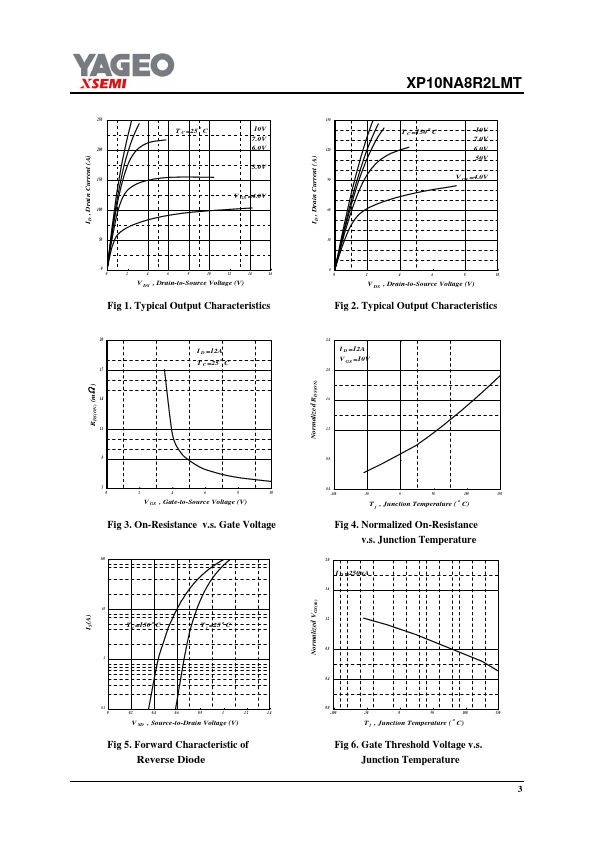

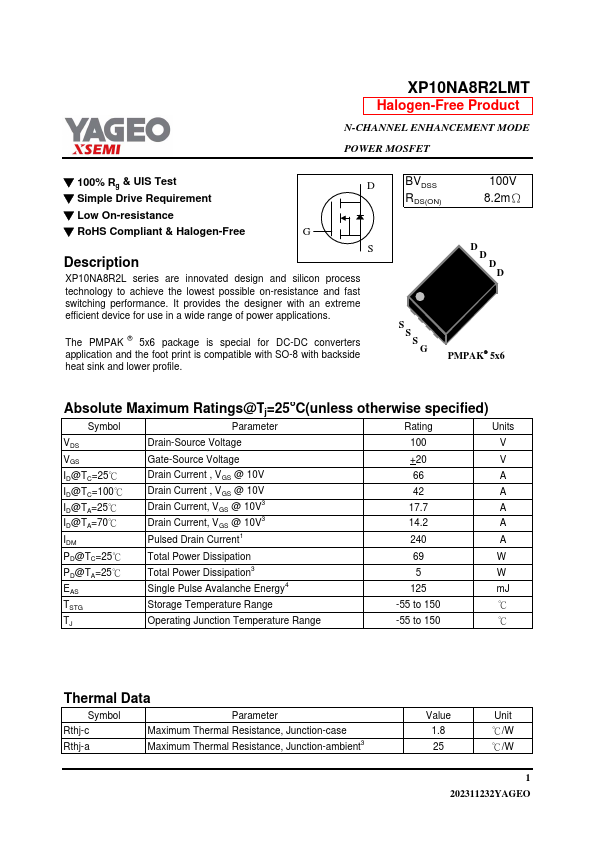

XP10NA8R2LMT Datasheet Preview — Preview of XP10NA8R2LMT PDF

Datasheet Specifications

Part number: XP10NA8R2LMT
Manufacturer: YAGEO
File Size: 324.38 KB
Datasheet: XP10NA8R2LMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 100V 8.2mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
