XP12C220JY N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP12C220JY Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performan.
XP12C220 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

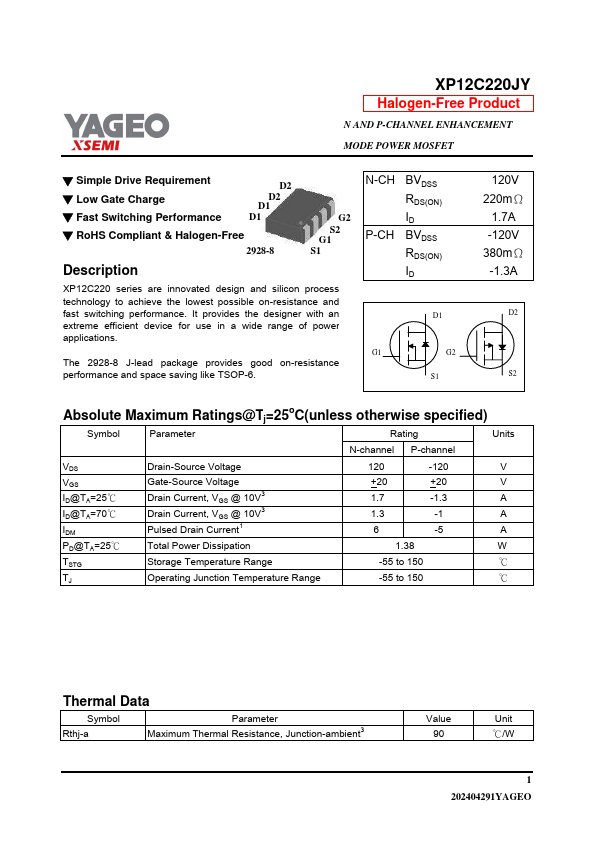

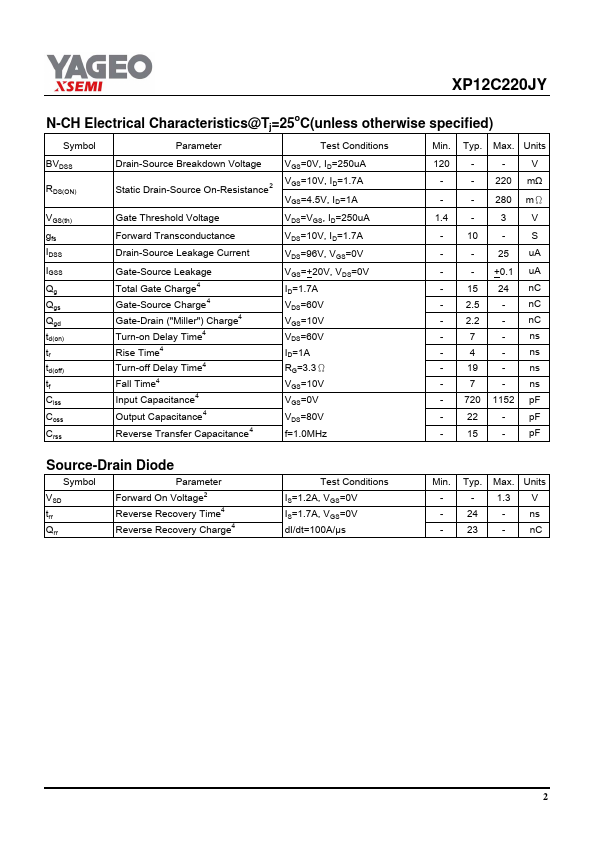

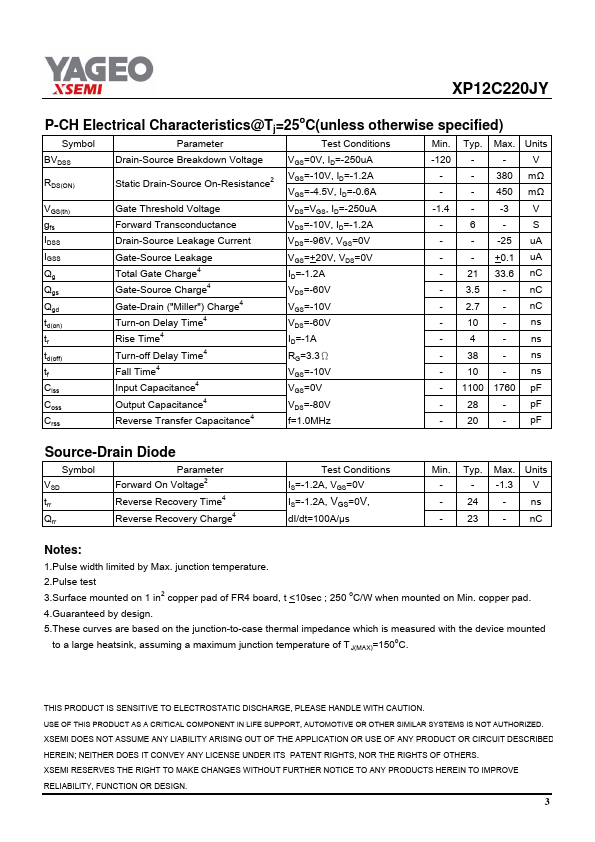

XP12C220JY Datasheet Preview — Preview of XP12C220JY PDF

Datasheet Specifications

Part number: XP12C220JY
Manufacturer: YAGEO
File Size: 254.88 KB
Datasheet: XP12C220JY-YAGEO.pdf
Description: N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The 2928-8 J-lead package provides good on-resistance performance and space saving like TSOP-6. N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G1 G2 S1 120V 220mΩ 1.7A -120V 380mΩ -1.3A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units N-
