XP2531GY - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP2531GY Description

XP2531GY Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 1.8V Gate Drive ▼ Lower Gate Charge ▼ Surface Mount Package .
XP2531 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP2531GY Applications

* The SOT-26 package is widely used for all commercialindustrial applications. N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 16V 58mΩ 3.5A -16V 125mΩ -2.5A D2 S2 Absolute Maximum Ratings@Tj=25oC. (unless otherwise specified) Symbol Parameter Rating Units N-channel P-channel VDS D

📥 Download Datasheet

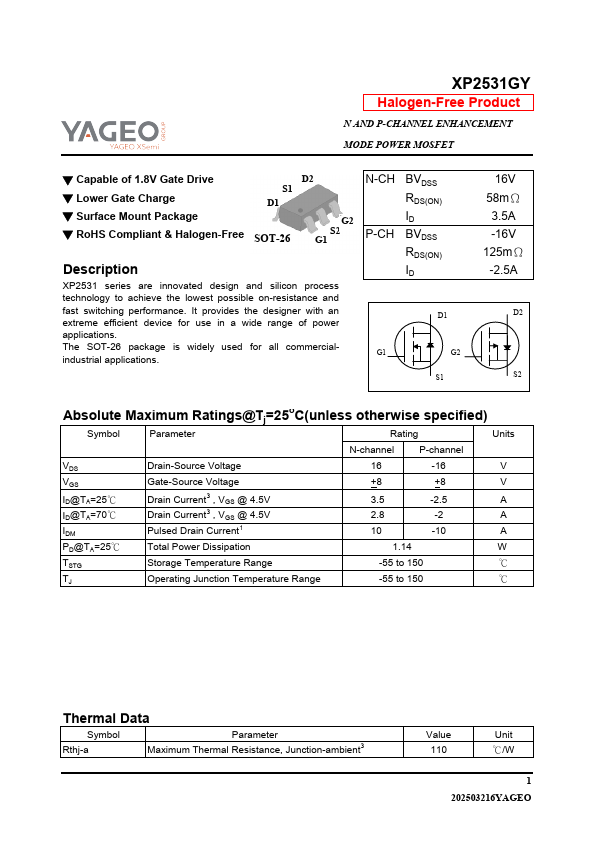

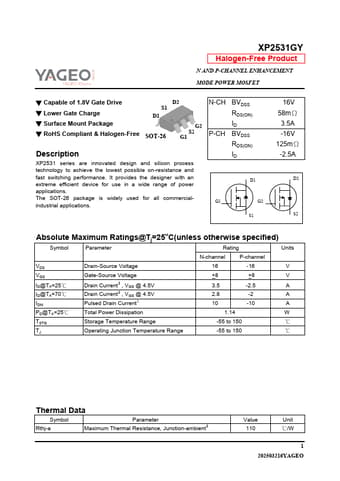

Preview of XP2531GY PDF

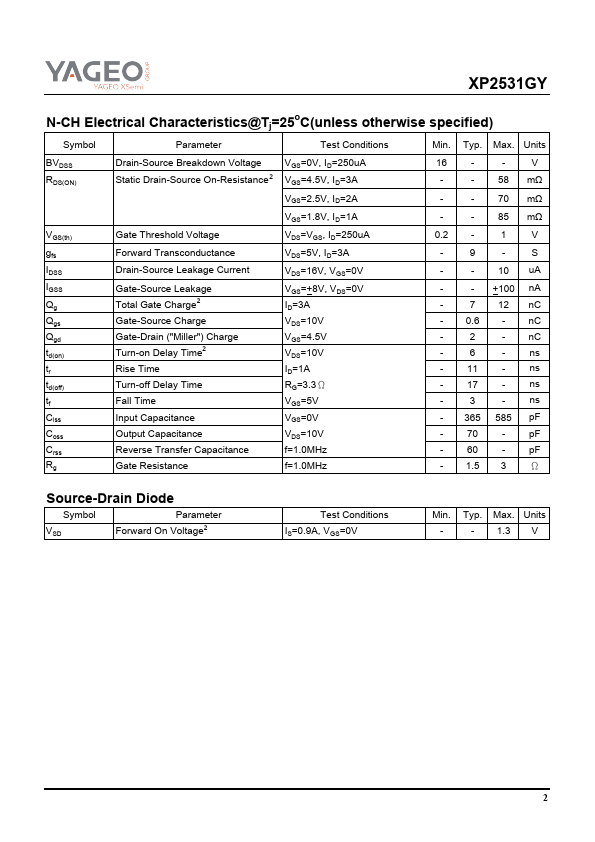

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP2531GY
Manufacturer
YAGEO
File Size
435.00 KB
Datasheet
XP2531GY-YAGEO.pdf
Description
N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET
