XP2535GEY - N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP2535GEY Description

XP2535GEY Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 1.8V Gate Drive ▼ Lower Gate Charge D2 S1 D1 ▼ Fast Switc.
XP2535 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP2535GEY Applications

* The SOT-26 package is widely used for commercial surface mount applications. N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 20V 32mΩ 4.6A -20V 80mΩ -3.1A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units N-channel P-channel VDS Dra

📥 Download Datasheet

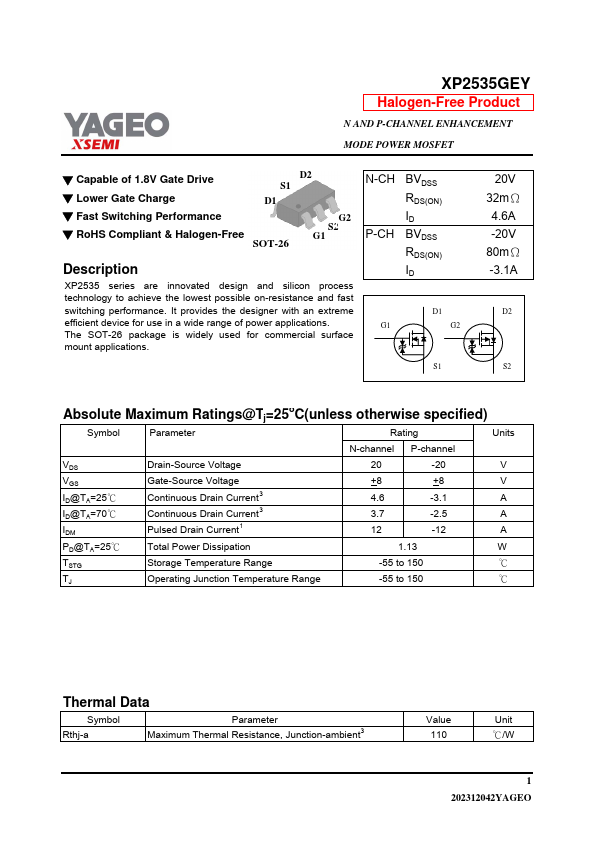

Preview of XP2535GEY PDF

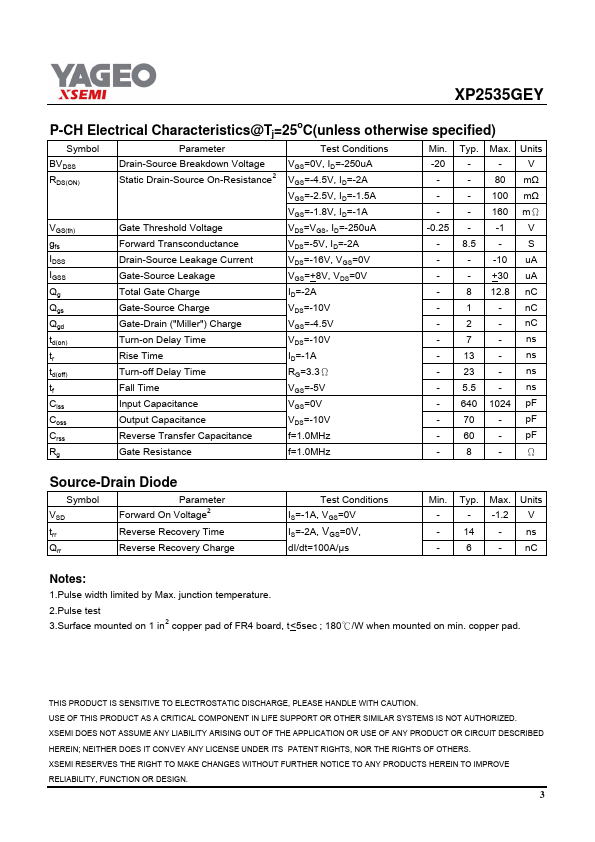

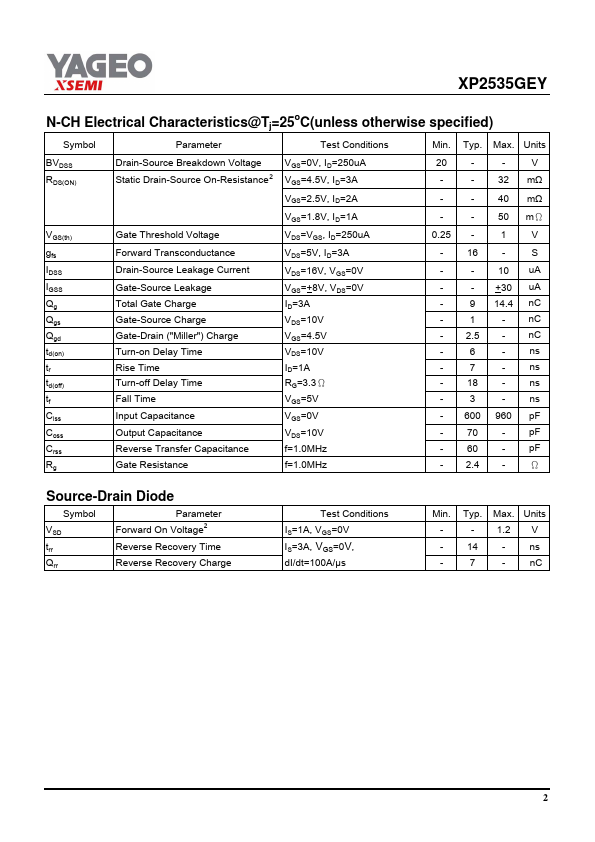

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP2535GEY
Manufacturer
YAGEO
File Size
252.94 KB
Datasheet
XP2535GEY-YAGEO.pdf
Description
N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET
