XP25N10GH - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP25N10GH Description

XP25N10GH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Simple Drive Requirement ▼ RoHS Compliant & Halogen-F.
XP25N10 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP25N10GH Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID 100V 80mΩ 23A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless o

📥 Download Datasheet

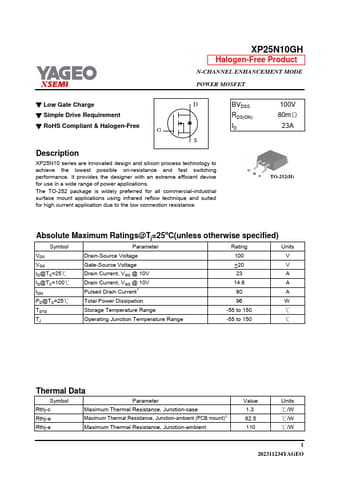

Preview of XP25N10GH PDF

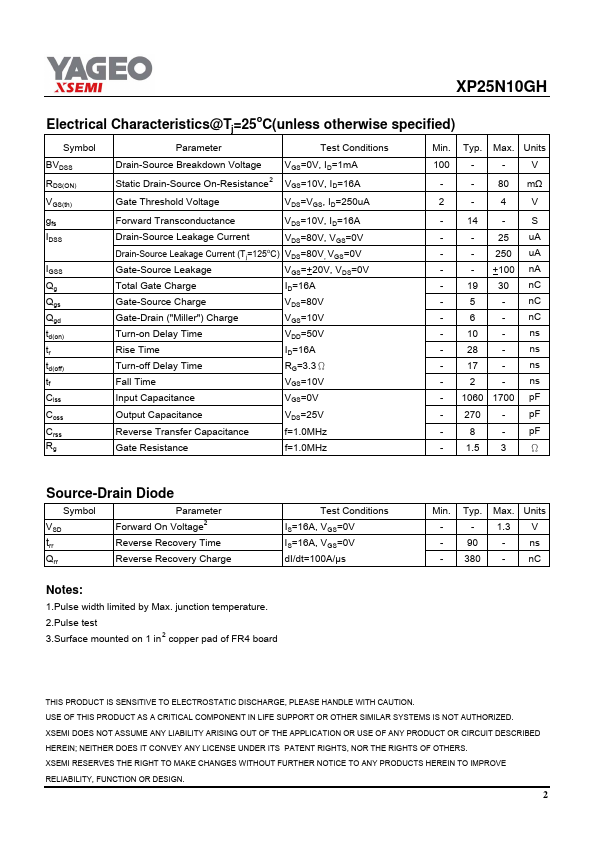

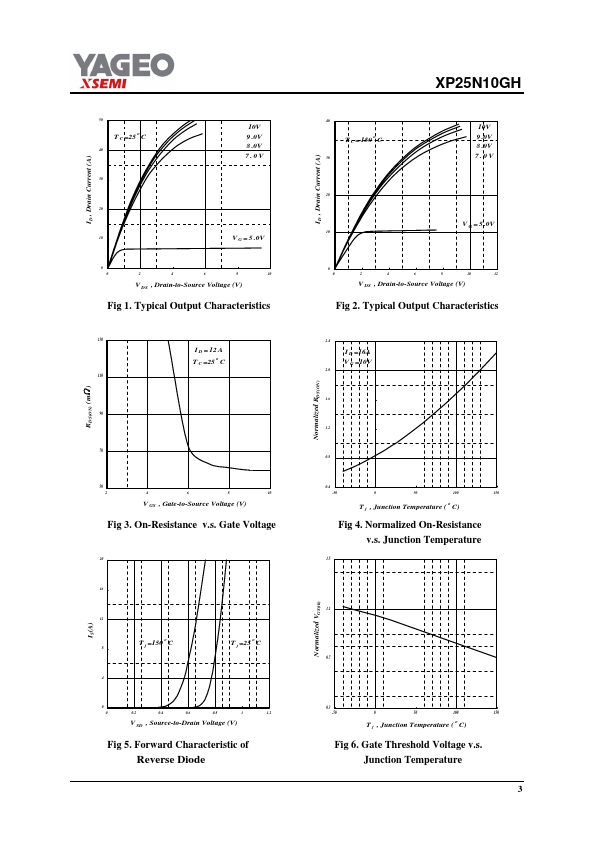

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XP25N10GH
Manufacturer
YAGEO
File Size
210.87 KB
Datasheet
XP25N10GH-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
